Why 21:9 changes everything
The standard 16:9 display was designed for television. It works well enough for watching video, but it was never built for the way professionals actually work. In a control room, a boardroom, or a collaborative workspace, operators and decision-makers need to see more information at once, not more vertical space for letterboxed content. The 21:9 ultrawide aspect ratio solves this by delivering roughly 33% more horizontal screen area than a 16:9 display of the same diagonal size, and it does so on a single, seamless panel with no bezels dividing the view.

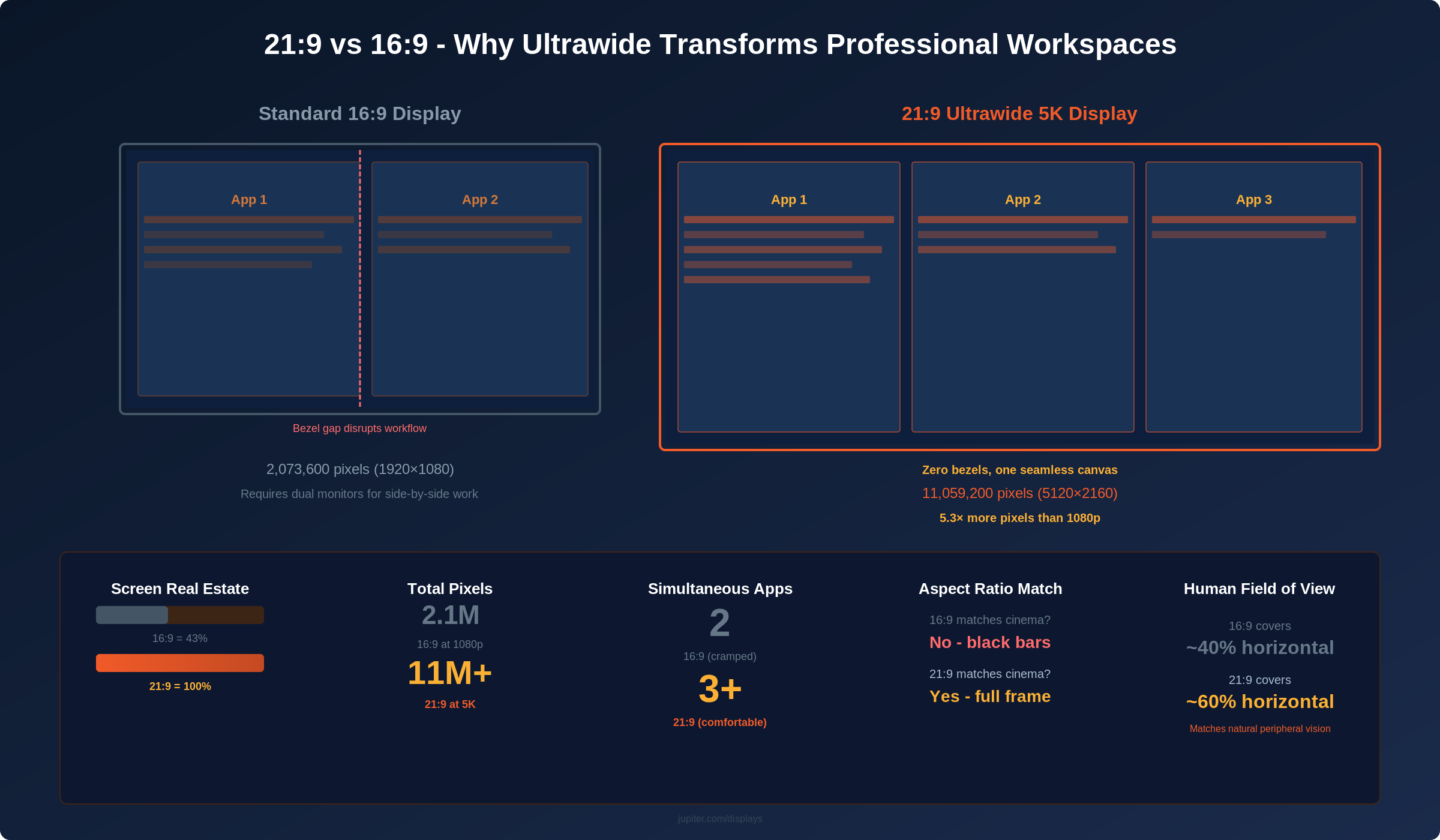

This is not a minor upgrade. A 21:9 5K ultrawide LCD running at 5120×2160 native resolution produces over 11 million pixels, more than five times the pixel count of a standard 1080p display. That is enough resolution to run three full applications side by side at comfortable sizes, or to display a panoramic data dashboard, a live video feed, and a communication window simultaneously without overlapping or switching between tabs. For environments where situational awareness or multitasking efficiency directly affects outcomes, the 21:9 format is transformative.
The 21:9 aspect ratio also aligns more closely with the human field of view. Our eyes see roughly 2.3 times wider than they see tall, which is why cinema adopted widescreen formats decades ago. A 21:9 ultrawide LCD fills more of your peripheral vision at a natural viewing distance, creating a more immersive and ergonomically comfortable experience during long working sessions. Neck strain from constantly turning between two separate monitors disappears when everything lives on one continuous canvas.
21:9 ultrawide in professional AV, the use cases that matter
The 21:9 aspect ratio was not adopted by the pro AV industry as a novelty. It solves real problems in real installations, and the ecosystem of collaboration platforms and wireless presentation systems has caught up to make ultrawide a first-class format across the board.
Microsoft Teams Rooms and Front Row layout
Microsoft Teams Rooms Front Row was designed specifically for ultrawide displays. The layout places the video gallery at eye level across the full width of the screen, with shared content, chat, and raised hands arranged below and beside the gallery. On a 16:9 display, Front Row feels cramped and forces compromises on how much content can be shown alongside remote participants. On a 21:9 5K ultrawide LCD, Front Row delivers exactly the experience Microsoft intended: remote participants appear at natural size, the shared content area is large enough to read without squinting, and the meeting controls do not compete with the visual workspace. The result is a hybrid meeting experience where in-room attendees and remote participants feel equally present.
Zoom 5K support and ultrawide video conferencing
Zoom has added native 5K resolution support, and the combination of a 5K ultrawide display with a wide-angle camera creates a video conferencing experience that eliminates the most common frustration with large meeting room displays: distorted or cropped participants. On a 21:9 display, the camera’s field of view can match the display’s aspect ratio natively, showing full-body views of in-room participants without the vertical cropping that 16:9 cameras impose. People appear at natural proportions, standing or seated, with enough visual context to read body language and gestures. This matters enormously in executive meetings, client presentations, and courtroom depositions where nonverbal communication carries significant weight.
Barco ClickShare and wireless ultrawide presentation
Barco ClickShare supports native 21:9 ultrawide output, making it one of the few wireless presentation systems that can drive an ultrawide display at full native resolution without black bars, stretching, or letterboxing. This means any participant in a meeting room can share their screen wirelessly and have it fill the entire 21:9 canvas. For organizations that have standardized on ClickShare for BYOD (bring your own device) meeting rooms, the Pana family’s native 21:9 support ensures a seamless experience regardless of whether the presenting device is a Windows laptop, Mac, or mobile device.
Digital signage and the natural body proportion advantage
The 21:9 aspect ratio has a unique advantage in digital signage applications that display people: it preserves natural body proportions. A standing human body at a natural viewing distance fits a 21:9 frame far more naturally than a 16:9 frame, which either crops the person at the waist or wastes large amounts of vertical space showing empty area above their head. For corporate lobbies, retail environments, wayfinding kiosks, and hospitality check-in displays, the ultrawide format shows full-body content, panoramic environments, and wide-angle footage without the visual distortion or awkward cropping that narrower aspect ratios create.
Transportation hubs, airports, and event venues benefit from the panoramic format as well. Flight information display systems (FIDS), departure boards, and event schedules naturally contain wide, horizontal data layouts that map perfectly to 21:9. The format eliminates the need to scroll through information that could have been shown all at once on a wider display.
5K resolution on an ultrawide LCD, what it means in practice
Resolution numbers can be misleading without context. A display marketed as “5K” could mean different things depending on aspect ratio. On a 21:9 ultrawide LCD, 5K means 5120×2160, which translates to a pixel density high enough to render text, CAD drawings, financial data, and satellite imagery with absolute clarity at comfortable viewing distances.
Consider the practical difference. A 4K display at 16:9 delivers 3840×2160, roughly 8.3 million pixels. A 5K ultrawide at 21:9 delivers 5120×2160, over 11 million pixels. That additional 1,280 pixels of horizontal width provides a third working zone that simply does not exist on standard 4K. For a command center operator monitoring multiple data streams, or an engineer reviewing a wide schematic, that extra width is not a luxury, it is a necessity.
At the large format level, where displays reach 81 inches and 105 inches, 5K resolution ensures that every seat in a conference room or every operator position in a control room sees crisp, readable content. Pixel density remains high enough that text at standard sizes looks clean and sharp from normal viewing distances, even on a display surface that spans over eight feet.
Quantum Dot Mini-LED, the backlight technology that changed the game
The display panel itself is only part of the picture. Behind the LCD layer sits the backlight, and the technology used there determines brightness, contrast, and color accuracy more than any other single component. The most advanced LCD backlight technology available today is Quantum Dot Mini-LED, and it represents a generational leap over conventional edge-lit or direct-lit LED backlights.
Traditional LCD backlights illuminate the entire panel uniformly, which means that dark areas of the image still receive backlight bleed. The result is washed-out blacks and limited contrast. Mini-LED backlights solve this by using thousands of tiny LED zones, each of which can be dimmed or brightened independently. On a premium 21:9 5K ultrawide LCD, over 2,300 local dimming zones work in concert to produce contrast ratios reaching 1,000,000:1. When a portion of the screen needs to be truly dark, the LEDs behind that area simply dim to near zero, while adjacent bright elements maintain their full intensity.
The Quantum Dot layer adds another dimension. Quantum dots are nanoscale semiconductor particles that emit extremely precise wavelengths of light when excited. By placing a quantum dot enhancement film between the Mini-LED backlight and the LCD panel, the display can reproduce a wider color gamut than any conventional LCD. Premium ultrawide panels achieve 110% coverage of the DCI-P3 color space, exceeding what most professional monitors can deliver, and approaching the color volume of self-emissive technologies like OLED, but without the burn-in risk.
The Jupiter Pana family, 21:9 ultrawide displays for every environment
Jupiter pioneered the professional 21:9 ultrawide LCD category and remains the market leader in this space. The Pana family of ultrawide displays spans three distinct product lines, each engineered for a specific use case while sharing the same design philosophy: no embedded operating system, no security vulnerabilities from built-in Android, and complete platform independence.
Pana, the enterprise standard
The Jupiter Pana is the display that defined the professional ultrawide category. Available in 105-inch and 81-inch sizes, it delivers 5K native resolution (5120×2160) at 700 nits brightness with local dimming, IPS LCD technology for 178-degree viewing angles, and 20-point capacitive touch on touch-enabled models. The Pana 81T features metal-mesh capacitive touch technology with frameless edge-to-edge glass, engineered and tested specifically for use as a face-up collaboration table.
Connectivity is comprehensive: DisplayPort 1.4 with In/Out and MST daisy-chaining, HDMI 2.0, USB-C with 65W power delivery, USB 2.0, S/PDIF optical audio, and Ethernet with RS232 control. An optional OPS slot accepts a slot-in compute module with Intel i7, 16 GB DDR4, 256 GB NVMe, Wi-Fi, and Bluetooth, eliminating the need for an external PC entirely. With a rated lifetime exceeding 50,000 hours and HDCP 2.2 support across all inputs, the Pana is built for the long haul in enterprise environments.
Pana X, the premium flagship
The Jupiter Pana X takes everything the standard Pana offers and elevates it with Quantum Dot Mini-LED backlighting, 120 Hz native refresh at full 5K resolution, and peak brightness exceeding 2,200 nits. The contrast ratio jumps to 1,000,000:1 thanks to 2,300 local dimming zones, and the color gamut expands to 110% DCI-P3, making this the most color-accurate ultrawide LCD available for professional use.
Jupiter developed proprietary processing silicon for the Pana X, including a custom main board, power board, and FPGA board designed specifically to drive a 5K 120 Hz Quantum Dot Mini-LED panel of this size. No off-the-shelf controller board can handle this combination of resolution, refresh rate, and backlight zone count at 105 inches. Edge-to-edge optically bonded, tempered, anti-glare glass completes the premium experience, while the 78mm total depth allows flush wall mounting in ADA-compliant configurations.
The Pana X is the display you choose for executive boardrooms, mission-critical command centers, and any environment where image quality, color accuracy, and brightness performance must be uncompromising.
Pana 34, the ultrawide workstation
The Jupiter Pana 34 brings the 21:9 ultrawide experience to the individual workstation. This 34-inch desktop monitor delivers UWQHD resolution (3440×1440) at 165 Hz with FreeSync Premium and a 1 ms response time, specs that match dedicated gaming monitors but engineered for professional reliability. HDR400 certification and 10-point multi-touch provide the visual quality and interactivity that creative professionals and control room operators need at their personal stations.
What sets the Pana 34 apart from every other ultrawide monitor on the market is its integrated collaboration hardware. A flexible 4K/60Hz camera module with 124-degree ultra-wide field of view adjusts to the display’s native 21:9 aspect ratio, filling the entire screen during video calls instead of leaving dead space on the sides. Eight beamforming microphones with multi-level noise cancellation ensure clean audio in any environment, and the display is Zoom certified for seamless conferencing. A unique ergonomic drafting stand allows the display to be tilted for touch-based workflows like annotation, whiteboarding, and design review.
Why embedded operating systems are a security risk
Many large-format displays ship with built-in Android systems. Manufacturers include them because it is cheap, it adds a feature checkbox, and it lets them advertise “smart” functionality. The problem is that these embedded operating systems create a network-accessible attack surface inside your meeting room, your command center, or your classified facility.
An Android-based display is a computer connected to your network. It runs an operating system that may or may not receive security patches. It has Bluetooth and Wi-Fi radios that could be exploited. It runs services that your IT department did not approve and cannot fully audit. For organizations operating under ITAR, CMMC, FedRAMP, or any compliance framework that restricts network-connected devices, an embedded Android display is a liability.
Every display in the Jupiter Pana family takes the opposite approach. There is no embedded operating system. The display is a display, a passive visual output device that accepts video input and renders it. The optional Pana OPS compute module provides processing when needed, but it runs a standard, IT-manageable operating system that your security team controls, not a locked-down vendor build of Android that cannot be patched or audited. This design philosophy, treating the display as a secure peripheral rather than a smart device, is why the Pana family has been deployed in defense, intelligence, and government command centers where security is not optional.
Touch technology on large ultrawide displays
Adding touch capability to a 105-inch ultrawide display is an engineering challenge that most manufacturers simply avoid, and those that attempt it often deliver an experience that feels like an afterthought. The responsiveness, accuracy, and durability of the touch layer matter enormously when the display is being used daily for collaborative work, interactive presentations, or as a primary input device in a command environment.
The Pana family uses two distinct touch technologies optimized for different form factors. The large-format Pana 81T employs metal-mesh capacitive touch, a technology that delivers better optical clarity and more uniform touch sensitivity than projected capacitive alternatives at this scale. The touch layer is integrated behind frameless edge-to-edge glass and has been tested and verified for use in a face-up, table-mount configuration, a usage scenario that generates far more accidental touch events and requires more sophisticated palm rejection than a wall-mounted display.
The Pana X adds capacitive touch behind optically bonded, tempered, anti-glare glass. Optical bonding eliminates the air gap between the glass and the LCD panel, which reduces internal reflections, improves contrast in bright environments, and makes the touch surface feel more direct and responsive. The Pana 34 brings 10-point multi-touch to the desktop form factor with both finger and pen-tip precision, supported by an active precision pen with Windows Ink compatibility.
Connectivity and the end of cable chaos
Professional display installations succeed or fail based on connectivity. A display with stunning image quality but limited inputs, no daisy-chaining capability, or missing control protocols becomes an integration headache that costs more in labor and adapters than the display itself.
The Pana family was designed by engineers who understand professional AV integration. Every model includes USB-C with 65W power delivery, meaning a single cable connects a laptop, delivers video, data, and enough power to charge the device simultaneously. DisplayPort 1.4 with MST (Multi-Stream Transport) support allows daisy-chaining multiple displays from a single source output, reducing cable runs and simplifying signal distribution in multi-display environments.
For integration into control room management systems, the Pana supports RS232 serial control and Ethernet-based management, enabling automated power scheduling, input switching, and status monitoring through industry-standard protocols. HDCP 2.2 on all inputs ensures that protected content, whether corporate video streams, broadcast feeds, or encrypted media, displays without restrictions.
Choosing the right 21:9 5K ultrawide LCD
Selecting the right ultrawide display depends on three primary factors: the physical environment, the use case, and the required performance level.
For individual workstations where the display serves one or two users at desk distance, the Pana 34 provides the optimal combination of resolution, refresh rate, and integrated collaboration tools. Its built-in camera, microphones, and touch make it a complete workstation hub that eliminates separate peripherals.
For meeting rooms, classrooms, and collaborative spaces where groups of 5 to 15 people need to view and interact with content, the Pana in either 81-inch or 105-inch format delivers the size, brightness, and touch capability required. The optional OPS module makes it a self-contained presentation and collaboration station.
For executive boardrooms, command centers, and mission-critical environments where image quality cannot be compromised, the Pana X is the clear choice. Its Quantum Dot Mini-LED backlighting, 120 Hz refresh, 2,200-nit brightness, and 1,000,000:1 contrast ratio set a performance standard that no other ultrawide LCD approaches. The proprietary 5K processing architecture ensures that every pixel benefits from engineering that was purpose-built for this display, not adapted from consumer electronics.
Jupiter’s 21:9 Solutions Guide provides detailed comparison data and configuration recommendations for each Pana model across different installation scenarios. For direct guidance on selecting and configuring the right ultrawide display for your environment, talk to Jupiter’s team to explore how the Pana ultrawide family can transform your space.
