Zavus MicroLED

The Art & Engineering of COB MicroLED Video Wall Technology

Zavus is Jupiter's family of COB MicroLED video walls: fine pitch direct-view LED (dvLED) built with Flip-Chip COB technology for unprecedented color, contrast, and control. From large-format command center walls with Zavus XP to all-in-one meeting room and classroom displays with Zavus AIO.

Explore the Zavus Family Talk to an Expert
Precision / Performance / Efficiency
The Zavus Family

Two MicroLED Video Wall Platforms, One Vision

From expansive command center walls to streamlined meeting room displays, every Zavus MicroLED video wall shares the same COB DNA: engineered by Jupiter, the only company that builds both the display and the processor, for unmatched color accuracy, true black, and pixel-level control. From the rack to the wall.

Zavus XP

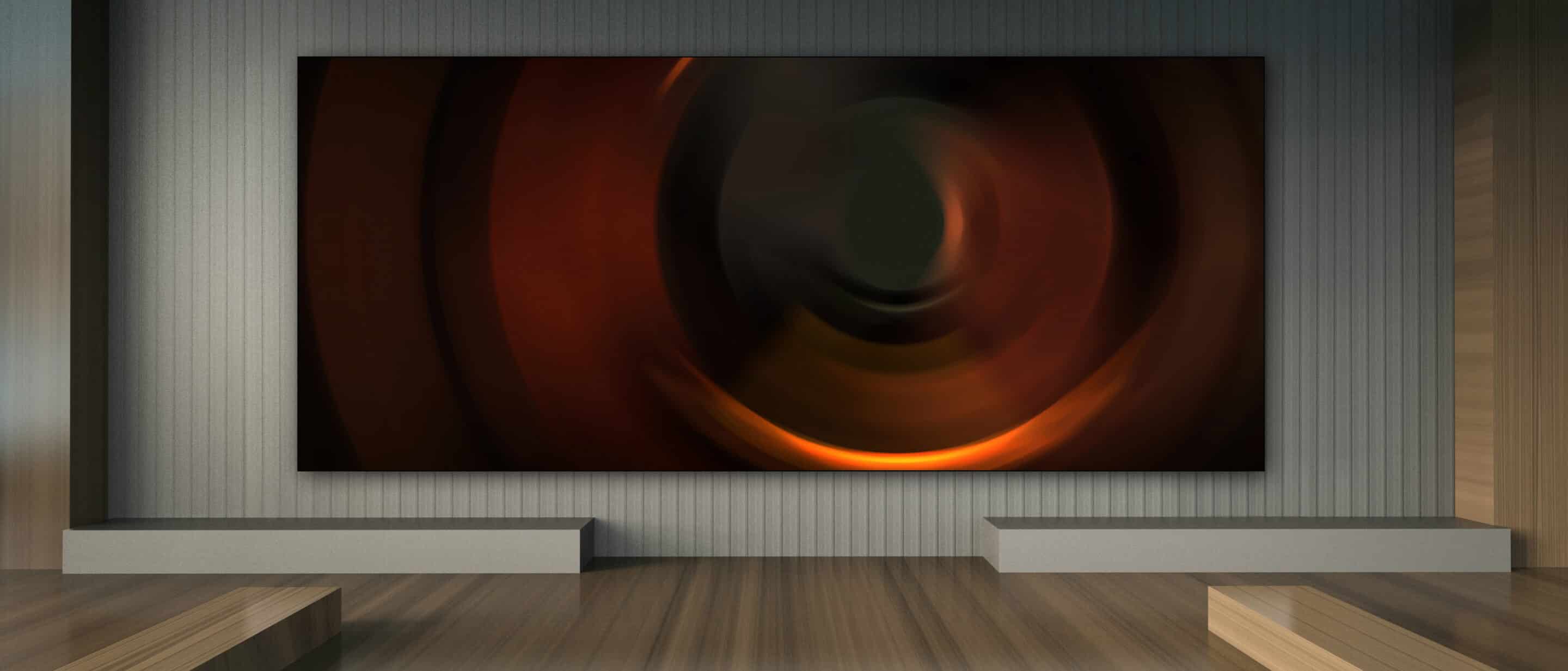

Zavus XP MicroLED command center installation
Large Format

Zavus XP

Xtreme Pixel - the flagship COB MicroLED video wall platform for command centers, corporate, and large-scale installations. Custom sizes from 21:9 5K to massive seamless video walls.

1,000,000:1 Contrast COB MicroLED 1.2mm to 0.7mm Megapixel Control
Discover Zavus XP
AIO

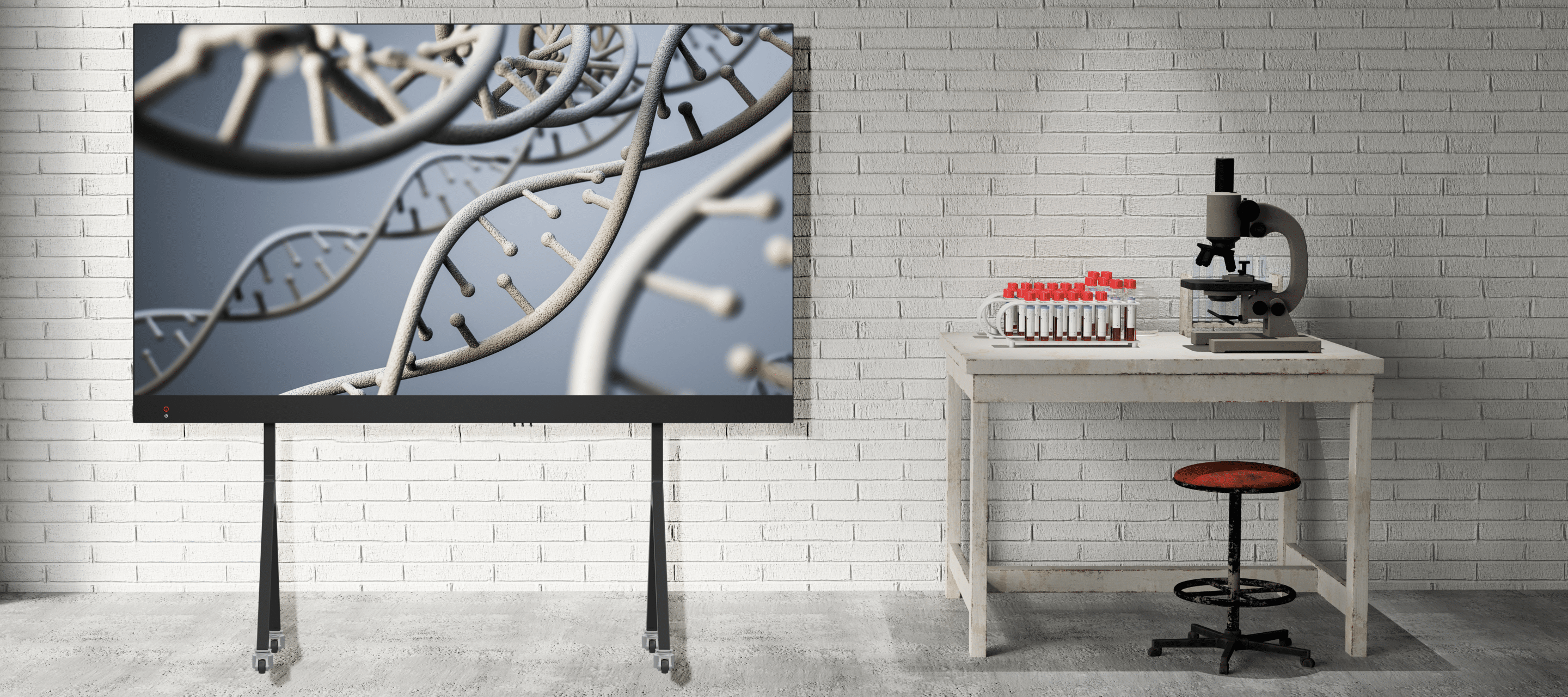

Zavus AIO All-In-One MicroLED in science lab
All-In-One

Zavus AIO

All the benefits of a premium COB MicroLED display in a sleek all-in-one form factor - wall-mount or cart, 4K or 1080p, with optional touch overlay for classrooms and huddle rooms.

1.8mm to 0.7mm 4K / 1080p 28mm Slim Touch Optional
Discover Zavus AIO
Side by Side

Compare Zavus COB MicroLED Displays

One COB MicroLED technology, two ways to deploy it: a modular video wall built to any size, or an all-in-one display ready for everyday rooms.
At a glanceLarge formatZavus XPAll-in-oneZavus AIO
FormatModular COB cabinets, any wall geometry from 21:9 5K to massive seamless wallsAll-in-one display, wall mount or mobile cart
Pixel pitch1.2 mm to 0.7 mm1.8 mm to 0.7 mm
ResolutionCustom, up to 8K60 over a single 100G SFP+ connection4K or 1080p
Image1,000,000:1 contrast, over 1,000 nits sustained, DCI-P3 and Rec.2020, 32-bit color processingCOB true blacks and wide viewing angles, 16-bit greyscale
Refresh5760 Hz max scan rate5760 Hz max scan rate
Build28 mm ultra-slim cabinet, IP54 epoxy surface, more than 30% energy efficient28 mm slim, ADA compliant, optional touch overlay
ControlPixel-level calibration, Helios web monitoring, Netgear AV switchesPlug and play, no external processor required
Best forCommand centers, broadcast facilities, lobbies and showcase spacesMeeting rooms, classrooms, huddle rooms and executive suites
Not sure about size or pitch? The Zavus Calculator recommends a configuration from your room and viewing distance.
Buyer Guide

How to Choose a MicroLED Video Wall

Four questions point most projects to the right Zavus platform.
1

How large is the wall?

Command center, lobby or any custom geometry: Zavus XP. A single display for a meeting room or classroom: Zavus AIO.
2

How close will people sit?

The closer the audience, the finer the pixel pitch. Zavus XP and Zavus AIO both go down to 0.7 mm for close viewing. The Zavus Calculator recommends a pitch from your viewing distance.
3

Fixed install or mobile?

Permanent wall of any shape: Zavus XP. Flush wall mount or a mobile cart shared between rooms: Zavus AIO.
4

How many sources?

Many live sources on one wall: Zavus XP with Jupiter video wall processors, from the company that builds both. Plug and play presentations: Zavus AIO.
Zavus in one minute

What is Zavus?

True black, rich color and perfect uniformity. That is what Zavus is built for.

All video tutorials →
Applications

COB MicroLED for Every Room

Where true black, seamless imagery and long life matter most.
Command & Control

Command centers and control rooms

Seamless 24/7 walls with no bezels across maps, cameras and dashboards, protected by a sealed epoxy surface.
Best fit: Zavus XP
SecurityUtilityMilitary
Broadcast & Showcase

Broadcast and showcase spaces

Color-critical imagery across DCI-P3 and Rec.2020 for studios, briefing centers, lobbies and experience centers.
Best fit: Zavus XP
SignageEnterprise
Collaboration

Boardrooms and meeting rooms

Replace projectors and LCD walls with a seamless MicroLED display that needs no maintenance.
Best fit: Zavus AIO, Zavus XP in 21:9 5K
Enterprise
Education

Classrooms and training rooms

4K MicroLED with optional touch, on the wall or on a cart that moves between rooms.
Best fit: Zavus AIO
Education
Sizing Tool

Plan your wall with the Zavus Calculator

Enter your room dimensions, viewing distance, and resolution needs, our MicroLED video wall calculator recommends the optimal Zavus configuration, cabinet count, and provides an instant sizing estimate and quotation request.

Launch the Calculator
Zavus Calculator tool interface
Buyer FAQ

COB MicroLED Video Wall Questions

Straight answers to the questions buyers ask most when choosing a MicroLED video wall.
What is a COB MicroLED video wall?
A COB (chip-on-board) MicroLED video wall mounts tiny LED chips directly on the circuit board and seals them under a protective epoxy layer. The result is a seamless direct-view LED display with true blacks, wide viewing angles and no exposed diodes to damage.
What is the difference between COB and SMD LED?
SMD LED displays solder individually packaged LEDs onto the board, leaving them exposed. COB places the bare chips on the board and encapsulates them, which allows finer pixel pitch, better contrast, a surface you can touch and clean, and fewer dead pixels from impact. Read the COB vs SMD comparison.
What is Flip-Chip COB?
Flip-Chip COB mounts each LED chip upside down, so it connects to the board without wire bonds. This improves heat dissipation, reliability and light output, and is the technology behind every Zavus display. Flip-Chip COB vs regular COB.
Is MicroLED the same as dvLED?
dvLED (direct-view LED) is any display where the LEDs themselves form the image. MicroLED is the fine-pitch end of dvLED, using very small LED chips. Zavus is a COB MicroLED dvLED platform. Read the COB display technology guide.
What pixel pitch do I need for a MicroLED video wall?
The closer your audience sits, the finer the pitch should be. Zavus XP ranges from 1.2 mm down to 0.7 mm and Zavus AIO from 1.8 mm down to 0.7 mm. The Zavus Calculator recommends a pitch and cabinet count from your room size and viewing distance.
What is the difference between Zavus XP and Zavus AIO?
Zavus XP is a modular MicroLED video wall built from cabinets to any size or shape, for command centers, broadcast and showcase spaces. Zavus AIO is an all-in-one MicroLED display in 4K or 1080p for meeting rooms and classrooms, on the wall or on a mobile cart, with optional touch.
Can Zavus work with Jupiter video wall processors?
Yes. Jupiter is the only company that builds both the MicroLED display and the video wall processor, so a Zavus XP wall can be driven and managed by the same Jupiter system that runs the rest of your control room.
Ready for MicroLED?

See Zavus in action

Schedule a demo or visit our showroom to experience the difference that a Jupiter MicroLED video wall makes. From the rack to the wall. Explore the complete Jupiter visualization stack.

Talk to an Expert Explore Processors Discover Pana
