J4™ Processors
Typically installed in these Markets:
- Retail
- Sports & Entertainment
- Digital Signage
J4 Processors

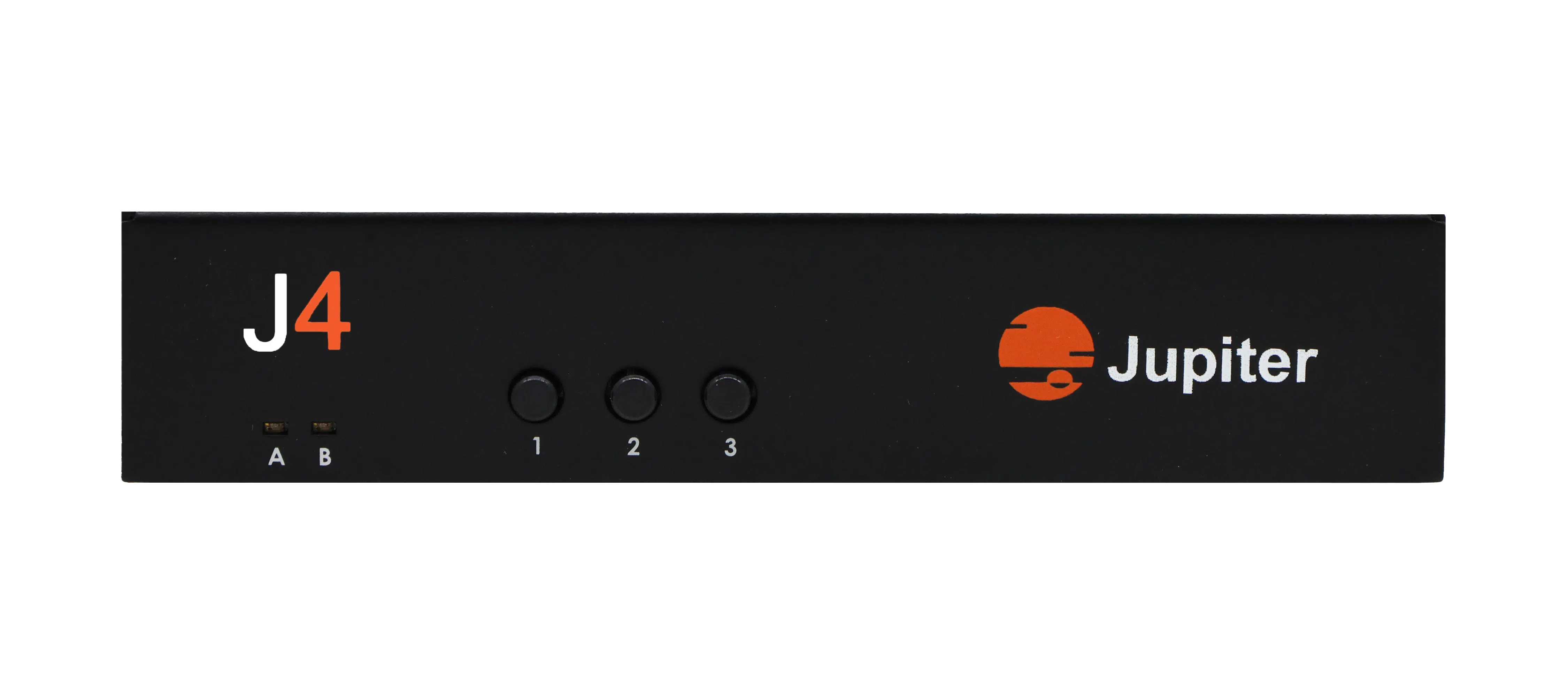

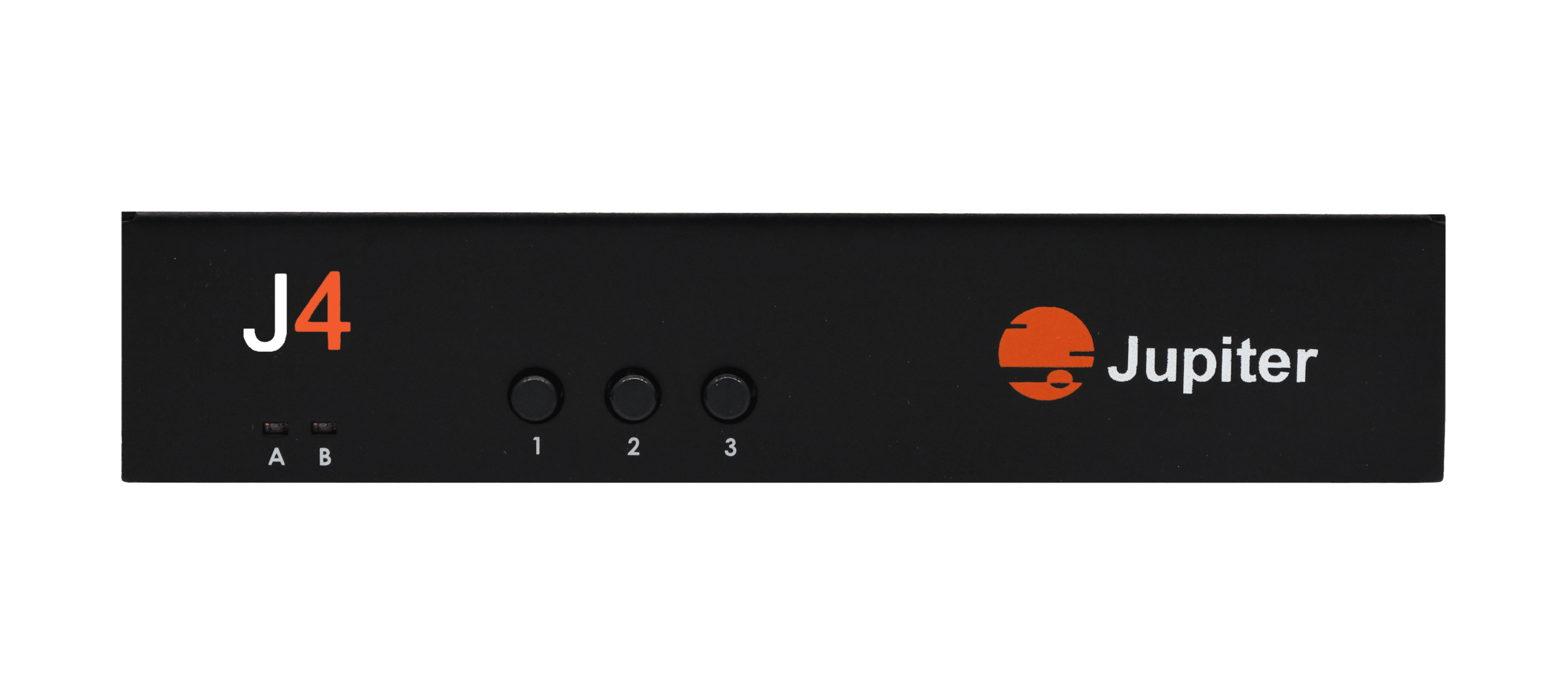

![J4 Front_080222](https://n4g9g5y2.rocketcdn.me/wp-content/uploads/2022/08/J4-Front_080222-1.png)
Small and powerful
- Compatible with J-Series, Catalyst and PixelNet
- Pre-configured for a 2×2 and 1×3
- Crop, scale and rotate independent displays
Architecture of a J4 Installation
![J4 Diagram_031822-06](https://n4g9g5y2.rocketcdn.me/wp-content/uploads/2022/07/J4-Diagram_031822-06.png)
Versatile processor
Small and powerful video wall processor, the J4 can be combined with 4K outputs from any Jupiter processor to create a large video wall with up to 64 FHD displays. The integrated display-looping feature easily expands any 4K signal into a 2×2, 1×3, 3×1, 1×2 or 2×1 video wall. This key functionality helps expands the number of FHD outputs on a processor and saves on the project cost without sacrificing features.
The J4 comes in a variety of inputs and form factors and the appliance can be used as an independent video wall for signage or can be placed near the video wall to breakout a single 4K input into multiple FHD outputs
![Menu Config](https://n4g9g5y2.rocketcdn.me/wp-content/uploads/2022/07/Menu-Config-1.png)
J4 range

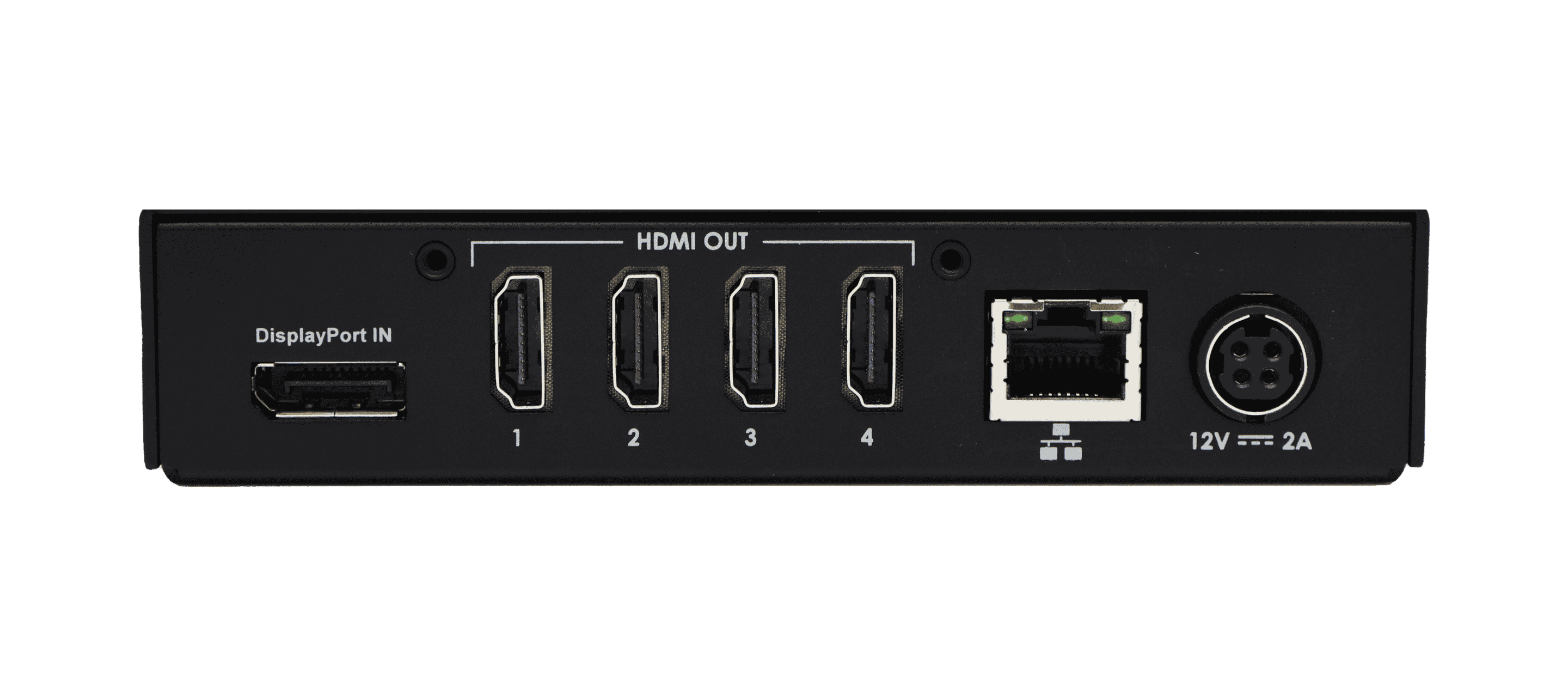

J4DP – 4K – 1x DisplayPort 1.4 input, 4x FullHD HDMI outputs
![J4 Back_080222](https://n4g9g5y2.rocketcdn.me/wp-content/uploads/2022/08/J4-Back_080222.png)

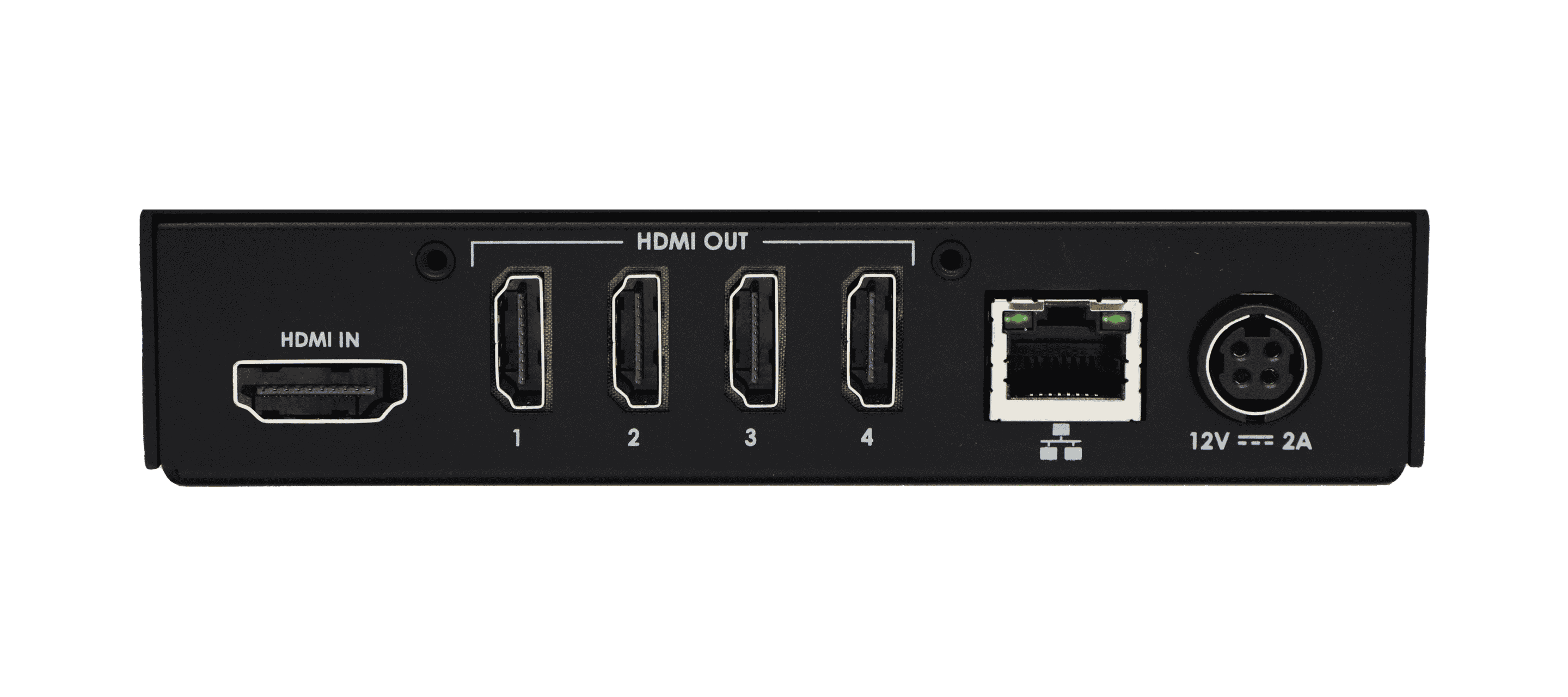

J4HDMI – 4K – 1x HDMI 2.0 input, 4x FullHD HDMI outputs
![J4 Back HDMI Variant_080222](https://n4g9g5y2.rocketcdn.me/wp-content/uploads/2022/08/J4-Back-HDMI-Variant_080222.png)

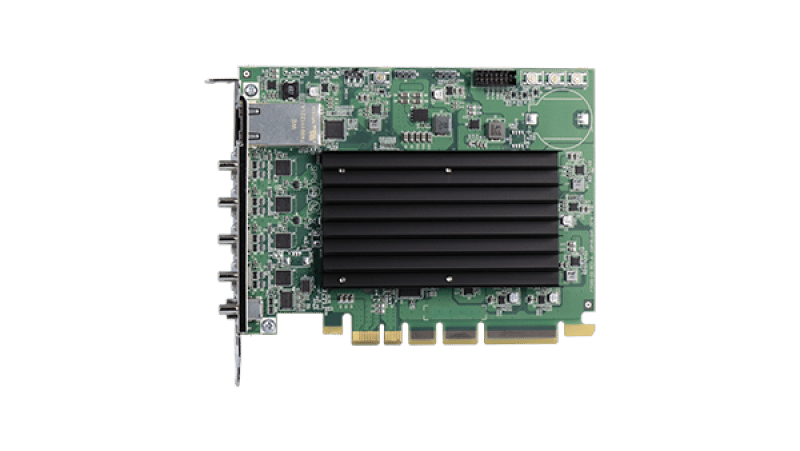

J4DPe – 4K – 1x Mini DisplayPort 1.4 input, 4x FullHD mini-HDMI outputs, PCIe form factor
![J4 Q185 Card_Mini DP](https://n4g9g5y2.rocketcdn.me/wp-content/uploads/2022/08/J4-Q185-Card_Mini-DP.png)

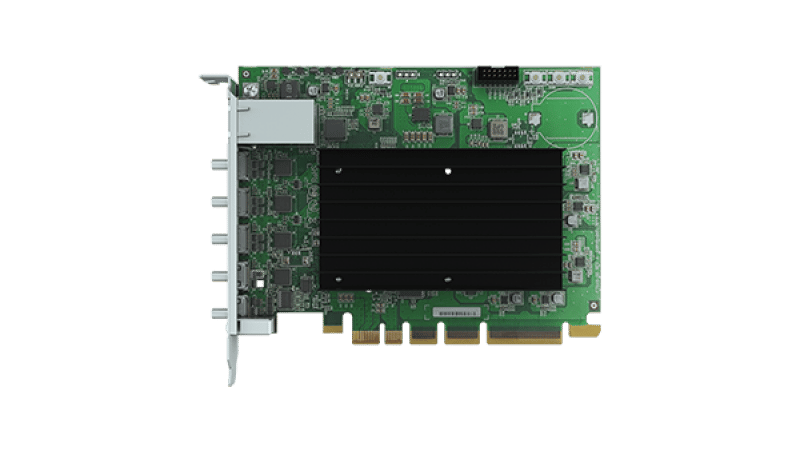

J4HDMIe – 4K – 1x Mini HDMI 2.0 input, 4x FullHD mini-HDMI outputs, PCIe form factor
![J4 Q155 Card_Mini HDMI](https://n4g9g5y2.rocketcdn.me/wp-content/uploads/2022/08/J4-Q155-Card_Mini-HDMI.png)
