If you have ever stood in front of a massive, seamless display and wondered how it produces such vivid imagery with no visible bezels or seams, you were likely looking at a MicroLED display. This technology has rapidly moved from experimental labs into mission-critical installations across the pro AV industry, and for good reason. MicroLED delivers what no LCD panel array or traditional LED wall ever could: true black levels, extraordinary brightness, and a completely seamless canvas at virtually any size.
But the terminology can be confusing. You will hear “direct view LED,” “fine pitch LED,” “Mini LED,” and “MicroLED” used in ways that blur important distinctions. This guide breaks down what MicroLED display technology actually is, how COB (Chip-on-Board) MicroLED differs from older LED approaches, and what matters when selecting a MicroLED video wall or all-in-one display for your environment.
What makes a MicroLED display different
At its core, a MicroLED display uses microscopic light-emitting diodes, each one smaller than 100 microns, as individual self-emitting pixels. Unlike LCD panels that rely on a backlight filtered through liquid crystals, every pixel in a MicroLED display generates its own light. When a pixel needs to be black, it simply turns off entirely, producing true zero-luminance black that is impossible to achieve with backlit technologies.
This self-emissive property gives MicroLED displays contrast ratios that reach 1,000,000:1 and beyond, rivaling OLED while avoiding the organic degradation and burn-in risks that limit OLED in commercial and professional applications. A MicroLED video wall can sustain peak brightness above 1,000 nits continuously without any risk of image retention, making it ideal for environments where static content like dashboards, maps, or data feeds run 24/7.
The pixel density of modern MicroLED panels has reached a point where fine pitch options below 1mm are readily available. This means a MicroLED video wall can deliver 4K resolution, or even 8K, in sizes that would have required dozens of LCD panels just a few years ago. The result is a single, seamless display surface with no bezels, no alignment issues, and no color inconsistency between panels.

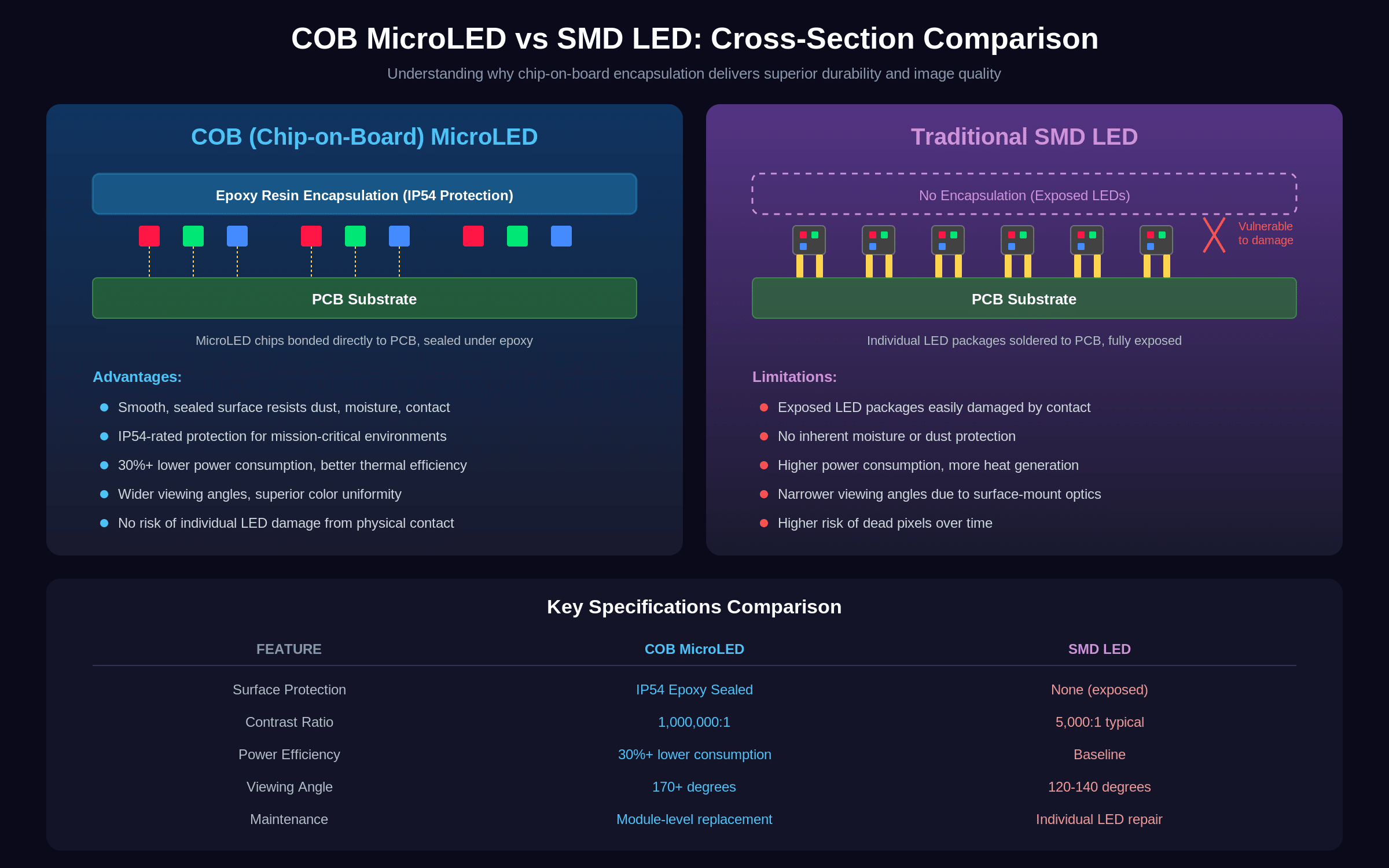

COB MicroLED – why encapsulation matters
Not all MicroLED is created equal, and the manufacturing process makes a significant difference in durability, image quality, and long-term reliability. The most advanced approach is COB, or Chip-on-Board, where the MicroLED chips are bonded directly onto the PCB substrate and then encapsulated in a protective epoxy resin layer. This creates a smooth, sealed surface rather than the exposed individual LED packages found in traditional surface-mount (SMD) LED displays.
The practical benefits of COB MicroLED are substantial. The epoxy encapsulation acts as a protective shield, making the display surface resistant to dust, moisture, and physical contact. Accidental bumps that would destroy exposed SMD LEDs simply bounce off a COB surface. This is why COB MicroLED displays can achieve IP54 ratings, meaning they are protected against dust ingress and water splashes, a durability level that older LED technologies cannot match.
COB manufacturing also enables significantly wider viewing angles because the light emission pattern is more uniform when LEDs are embedded rather than mounted on the surface. Color accuracy improves as well, with COB MicroLED panels capable of covering the DCI-P3 and Rec.2020 color gamuts with 32-bit color processing. For applications in broadcast, medical imaging, or design review, this level of color fidelity is not just nice to have, it is essential.
Energy efficiency is another area where COB MicroLED excels. Because the chip-on-board process is inherently more thermally efficient, COB displays consume more than 30% less power compared to traditional direct-view LED panels at the same brightness level. Lower power consumption means less heat output, which translates to reduced cooling requirements and lower total cost of ownership over the display’s lifetime.

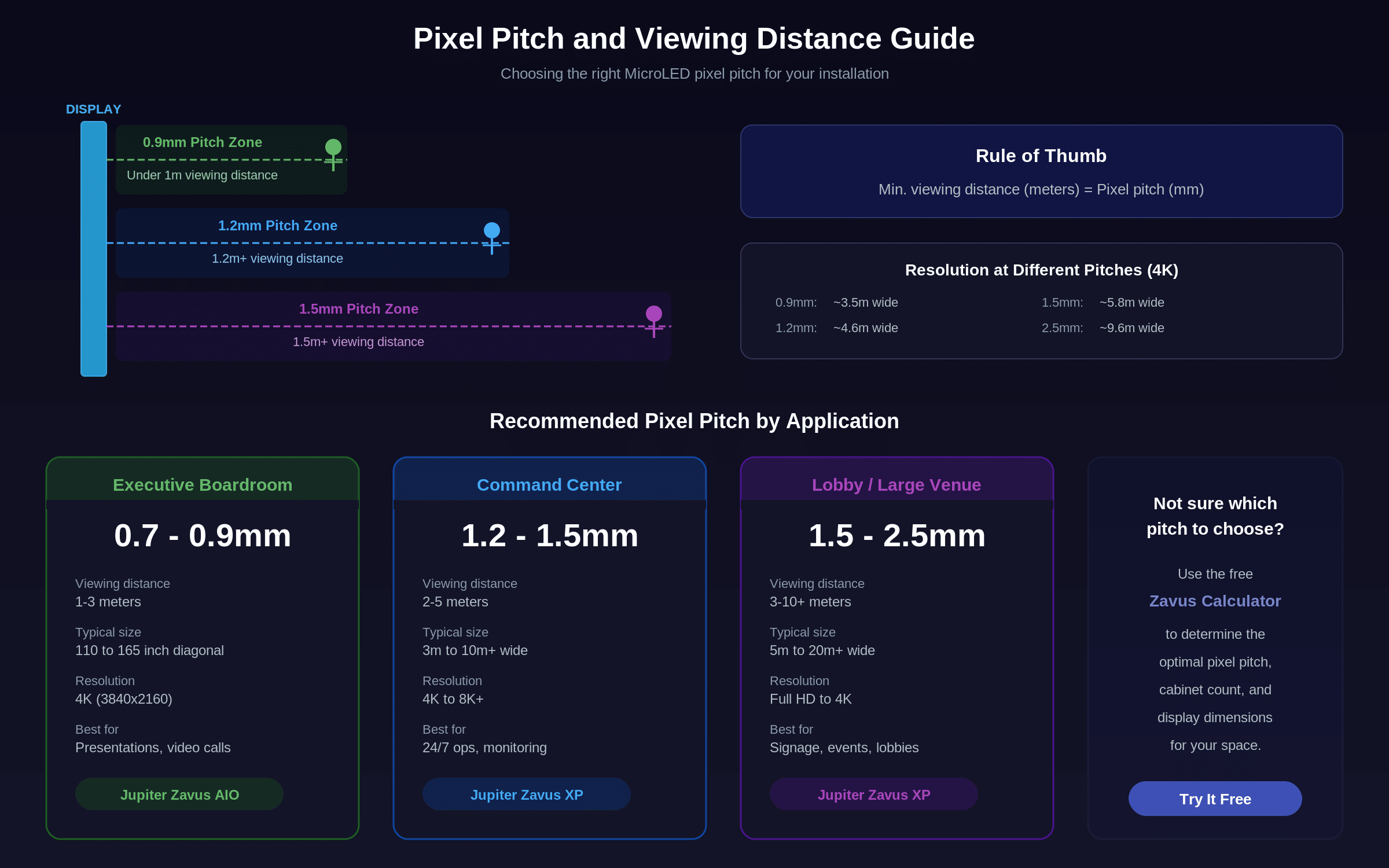

Understanding pixel pitch and viewing distance
Pixel pitch, measured in millimeters, describes the distance between the center of one pixel and the center of the next. It is the single most important specification when sizing a MicroLED display, because it determines both the resolution you can achieve at a given display size and the minimum comfortable viewing distance.
A general rule of thumb is that the minimum viewing distance in meters roughly equals the pixel pitch in millimeters. A display with a 1.2mm pixel pitch looks sharp from about 1.2 meters away, while a 0.9mm pitch display can be viewed comfortably from under one meter. For a command center where operators sit 2 to 3 meters from the wall, a pixel pitch between 1.2mm and 1.5mm typically delivers excellent results. For executive boardrooms or meeting rooms where viewers may be closer, pitches below 1.0mm are increasingly common.
The relationship between pixel pitch and total resolution is straightforward math but worth understanding. A 4K (3840 x 2160) display at 0.9mm pixel pitch results in a screen roughly 3.5 meters wide. The same 4K resolution at 1.5mm pitch produces a wall nearly 5.8 meters wide. Choosing the right pixel pitch is a balance between the physical space available, the intended viewing distance, and the resolution requirements of the content being displayed.
Jupiter’s Zavus Calculator is a free tool that helps AV professionals and end users determine the optimal pixel pitch, cabinet count, and total display dimensions for any installation, taking the guesswork out of this critical decision.
MicroLED for command centers and control rooms

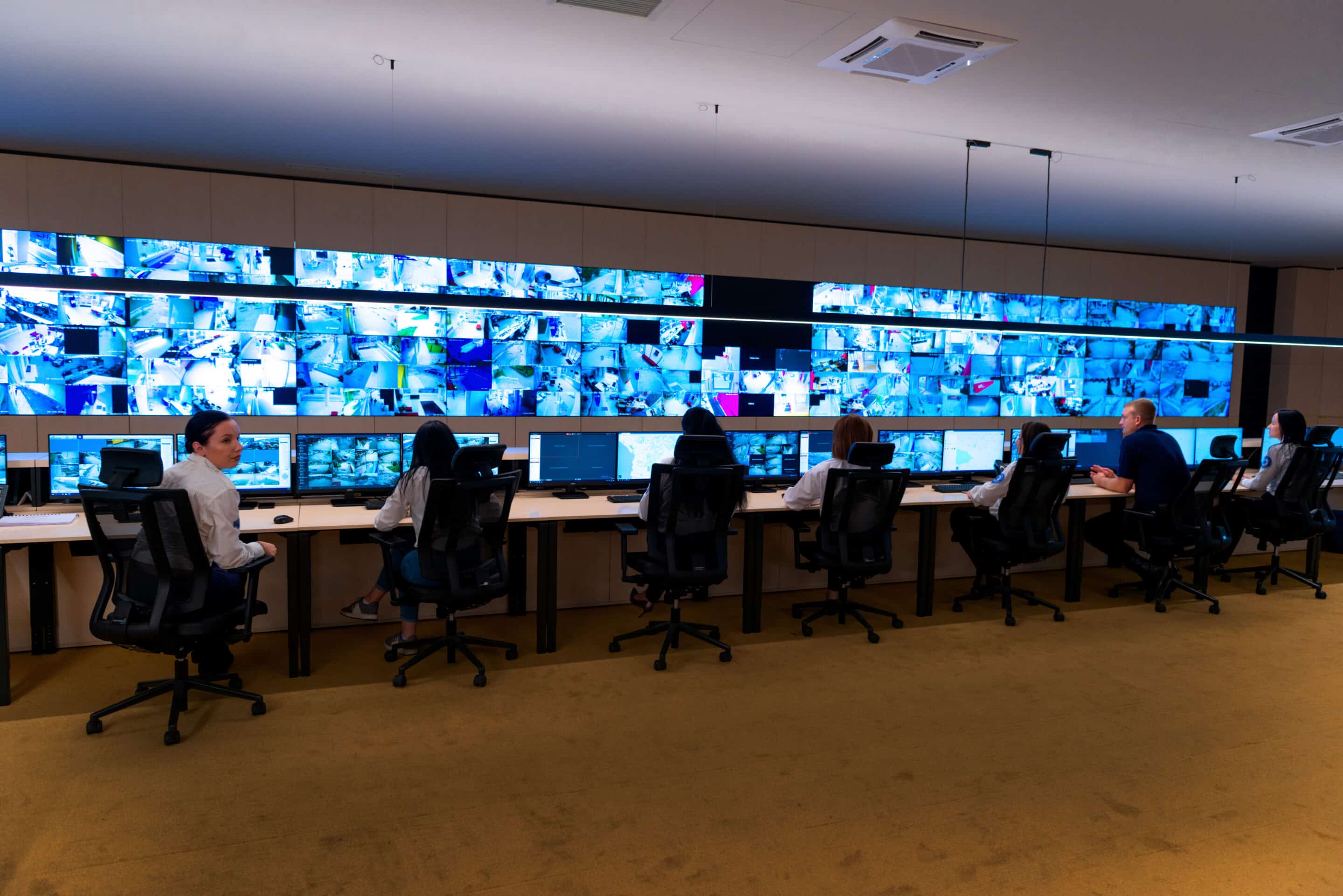

The command and control environment is where MicroLED video walls truly shine. These spaces demand displays that can run continuously, often 24 hours a day, 7 days a week, without degradation. Operators rely on the wall to present real-time data, video feeds, maps, and dashboards simultaneously, which means every pixel needs to be accurate and the display surface must remain consistent across its entire area.
Traditional LCD video walls with their visible bezels create lines that cut through map overlays and make it difficult to track objects moving across multiple panels. A seamless MicroLED video wall eliminates this problem entirely. The display surface is one continuous canvas, whether it spans 3 meters or 15 meters.
For these demanding environments, the Jupiter Zavus XP MicroLED video wall platform was specifically engineered. It delivers sustained brightness above 1,000 nits with a 1,000,000:1 contrast ratio, ensuring that both the brightest highlights and the deepest shadows in surveillance footage or satellite imagery are rendered with full detail. The Zavus XP supports 32-bit color processing across the DCI-P3 and Rec.2020 gamuts, which means color-critical applications like medical imaging, broadcast monitoring, and design review are handled with precision.
Connectivity is another area where the Zavus XP stands apart. ST2110 readiness means it can receive 8K content at 60 frames per second over a single 100G SFP+ connection, supporting the transition to IP-based broadcast and AV-over-IP workflows. The platform supports wall configurations in any aspect ratio, including panoramic 21:9 layouts at 5K resolution, which are increasingly popular in command centers where operators need a wide field of view without vertical wasted space.
The 28mm ultra-slim cabinet profile keeps the total wall depth to a minimum, an important consideration in retrofit installations where space behind the wall is limited. And the IP54-rated epoxy surface means the display is protected against dust and moisture, reducing maintenance requirements in environments that cannot afford downtime.
MicroLED all-in-one displays for meeting rooms and education
Not every MicroLED installation is a massive video wall. The same core technology, COB MicroLED with self-emissive pixels, scales down beautifully into all-in-one display formats designed for meeting rooms, classrooms, training facilities, and executive offices.
An all-in-one MicroLED display replaces projectors, flat panel TVs, and interactive whiteboards with a single, maintenance-free surface. There are no lamps to replace, no fans to clean, and no backlight to fail. The COB MicroLED panel simply works, day after day, delivering consistent brightness and color without the gradual fading that plagues projector-based systems.
The Jupiter Zavus AIO is built around this concept. It delivers 800 nits of peak luminance with 16-bit greyscale depth in a form factor just 28mm slim, thin enough to mount flush against a wall in ADA-compliant configurations or place on a mobile cart for flexibility between rooms. Available in 4K and 1080p resolutions, the Zavus AIO supports an optional touch overlay that transforms it into an interactive surface for collaborative work, brainstorming sessions, or classroom instruction.
The scan rate of 5,760 Hz on both the Zavus XP and Zavus AIO eliminates the flickering and banding artifacts that cameras pick up on lower-refresh displays, making these MicroLED solutions ideal for rooms where video conferencing is a daily occurrence. Content on the display looks clean and natural on camera, not striped with rolling bands.
How to evaluate a MicroLED display for your project
When specifying a MicroLED display for any professional installation, there are several factors beyond pixel pitch that deserve attention.
Color processing depth matters more than many buyers realize. An 8-bit panel can display roughly 16.7 million colors, which sounds like a lot until you notice banding in gradients and subtle color transitions. A display with 16-bit greyscale depth, like the Zavus AIO, renders over 65,000 shades per channel, producing smooth gradients that look natural. For the most demanding applications, 32-bit color processing, as found in the Zavus XP, delivers billions of color combinations and supports professional color spaces that 8-bit systems simply cannot reproduce.
Sustained brightness versus peak brightness is a distinction worth asking about. Many displays advertise impressive peak brightness numbers that can only be achieved in short bursts before thermal throttling kicks in. For environments where the display runs at high brightness for hours or the full day, the sustained brightness figure is what matters. A display that sustains 1,000 nits continuously is far more useful than one that peaks at 1,500 nits but throttles down to 600 nits after twenty minutes.
Cabinet calibration and uniformity correction are critical for any multi-cabinet video wall. Even with precise manufacturing, there will be slight variations between individual LED cabinets. The ability to calibrate and correct these differences at the pixel level, adjusting white point, color rendering, and seam visibility for each individual module, is what separates a good MicroLED wall from a great one.
Health monitoring should not be overlooked. In mission-critical installations, knowing the real-time status of every cabinet, every power supply, and every receiving card can mean the difference between proactive maintenance and an unexpected failure during a critical operation. Web-based monitoring platforms that work from both desktop and mobile devices allow facility managers to keep tabs on multiple display installations across different locations.
Finally, consider the total infrastructure. A MicroLED video wall is only as good as the signal distribution and processing behind it. Purpose-built network switches with AV-optimized firmware, like TAA-compliant options for government installations, ensure that the video data reaching each cabinet is delivered reliably and with minimal latency.
The future of MicroLED in professional AV
MicroLED display technology is still maturing, and the trajectory is clear: pixel pitches will continue to shrink, manufacturing costs will decrease as production scales, and the gap between MicroLED and legacy display technologies will only widen. The pro AV industry has already recognized COB MicroLED as the successor to both LCD video walls and traditional direct-view LED for applications where image quality, reliability, and longevity matter.
For organizations evaluating their next display investment, the question is no longer whether MicroLED is ready for professional use. It is. The question is which MicroLED platform delivers the right combination of image quality, durability, connectivity, and total cost of ownership for their specific environment.
Whether you are building a 24/7 command center, upgrading a corporate boardroom, or outfitting a university lecture hall, COB MicroLED technology offers a display solution that will look as good on day one thousand as it does on day one. Talk to Jupiter’s team to explore how the Zavus MicroLED family can transform your space.
