Every mission-critical environment has unique demands, and the video wall processor at the heart of each space must be chosen to match. A network operations center tracking thousands of endpoints, a military command post handling classified intelligence, and a corporate experience center welcoming VIP guests all require video walls, but each calls for a fundamentally different processing architecture. Selecting the wrong processor means compromising on capability, security, scalability, or budget. Selecting the right one means the technology disappears and operators focus entirely on the mission.
This guide maps every major operational environment to the ideal video wall processor from the Jupiter Systems lineup. Whether you are an AV integrator designing a proposal, a consultant evaluating architectures, or an end-user decision maker planning a new facility, this article gives you the decision framework to match the right processor to the right space, every time.
Table of Contents
- Jupiter’s Video Wall Processor Families at a Glance
- Network Operations Center (NOC)
- Security Operations Center (SOC)
- Emergency Operations Center (EOC)
- Tactical Operations Center and Military Command
- Transportation Management Center (TMC)
- Utility and Energy Control Room
- Corporate Experience Center and Boardroom
- Conference and Collaboration Room
- Multi-Site Distributed Operations
- Surveillance and Monitoring Room
- Digital Signage and Lobby Display
- Sports Venue and Event Space
- StreamPoint and J4: Supplementary Building Blocks
- Decision Framework: How to Choose Your Processor
- Conclusion
Jupiter’s Video Wall Processor Families at a Glance

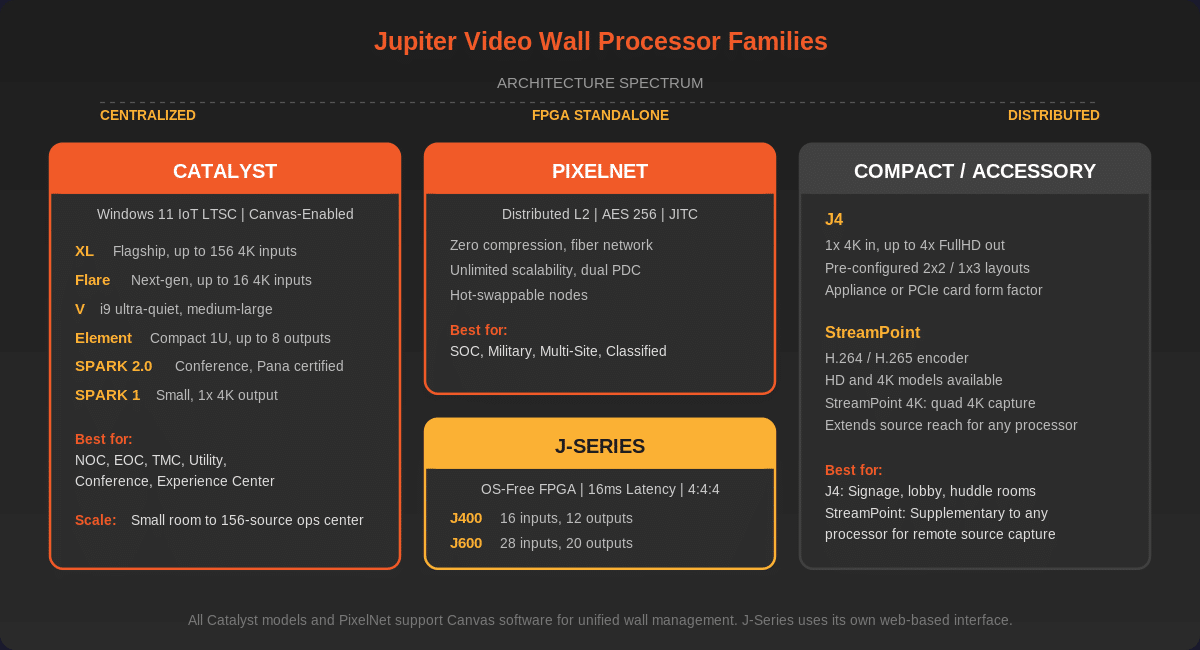

Before diving into specific room types, it helps to understand the four distinct processor families Jupiter offers and where each one sits in terms of architecture, scale, and intended use. The diagram below provides a high-level overview.
Each family serves a distinct architectural purpose. Catalyst is the centralized powerhouse, available in configurations from a single-output conference system to a 156-source operations center. PixelNet distributes uncompressed pixels across a secure, enclosed Layer 2 fiber network for environments where security, redundancy, and unlimited scalability are non-negotiable. J-Series delivers OS-free FPGA processing with 16-millisecond latency and true 4:4:4 chroma subsampling for pixel-perfect clarity. And the compact J4 and StreamPoint accessories fill specific roles as breakout boxes and source encoders, respectively.
Now, let us walk through each environment type and identify the ideal processor match.
Room-Type to Processor Mapping

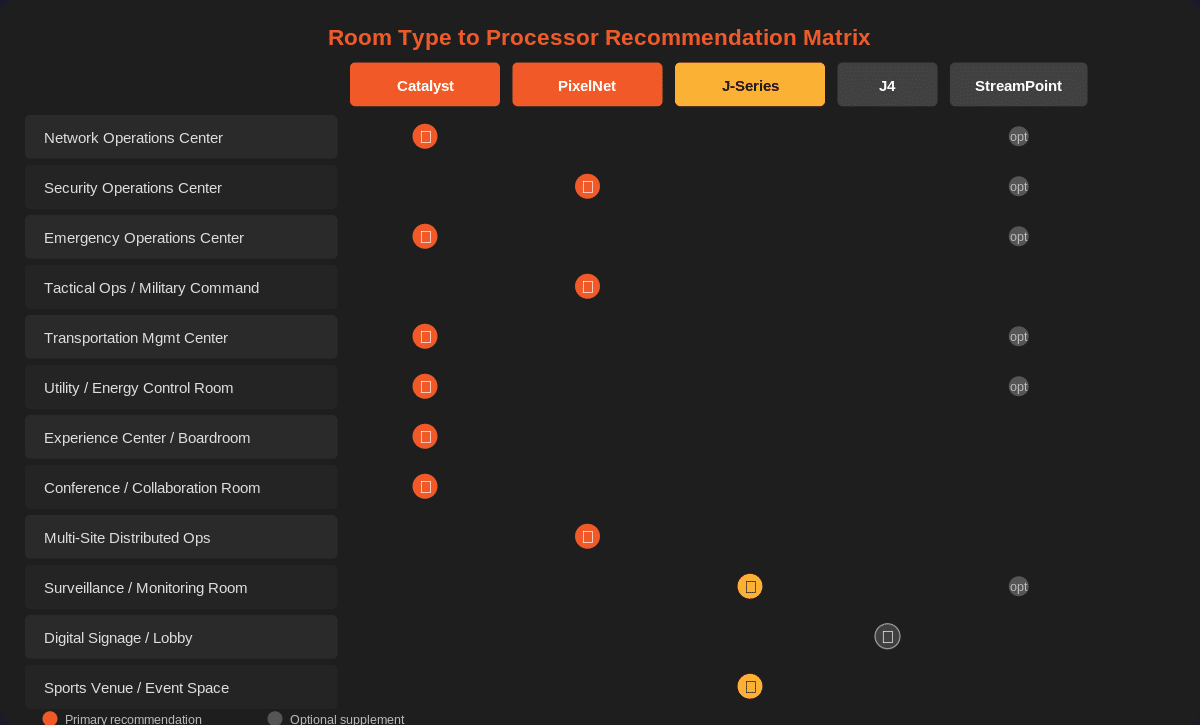

The matrix below provides a quick-reference view of which processor family best serves each operational environment. The sections that follow explain the reasoning in detail.
Network Operations Center (NOC)
Recommended processor: Catalyst XL or Catalyst V
The Environment
A network operations center is the nerve center of IT infrastructure monitoring. Operators watch over server health dashboards, network topology maps, ticketing queues, real-time alerting platforms, and sometimes hundreds of IP camera streams from data centers and remote facilities. The video wall must display dozens of sources simultaneously, with the ability to dynamically resize, rearrange, and prioritize windows as incidents escalate. A NOC typically runs 24/7/365, so reliability and ease of management are paramount.
Typical Sources
- SNMP/network monitoring dashboards (SolarWinds, Nagios, PRTG, Zabbix)
- ITSM and ticketing systems (ServiceNow, Jira)
- IP camera streams from data center facilities
- Web-based analytics and reporting portals
- Collaboration tools and communication channels
- Custom application windows and desktop captures

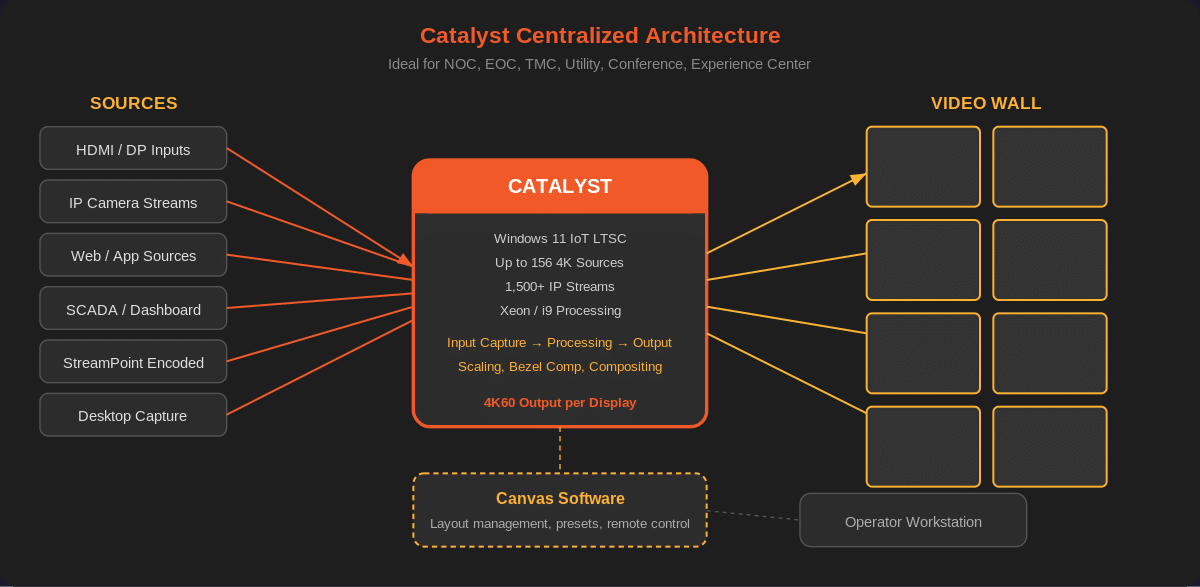

Why Catalyst Fits
The Catalyst XL can ingest up to 156 4K sources and decode over 1,500 IP streams, making it the clear choice for large-scale NOCs that need to display an enormous variety of content simultaneously. Its Windows 11 IoT LTSC foundation means operators can run native monitoring applications directly on the processor, eliminating the need for separate source PCs in many cases. The Canvas software platform provides drag-and-drop layout management, saved presets for shift changes, and remote control from any networked device.
For mid-size NOCs that do not require the full capacity of the XL, the Catalyst V offers a quieter, i9-based alternative in a more compact form factor while still delivering the processing power needed for complex multi-source layouts. If source locations are distant from the processor, StreamPoint encoders can capture signals at the source and stream them over the network to the Catalyst.
Security Operations Center (SOC)
Recommended processor: PixelNet
The Environment
A security operations center handles cybersecurity threat monitoring, incident response, and security event correlation. In many SOCs, the data displayed on the video wall is classified or restricted, and the infrastructure itself must meet stringent security standards. The network connecting sources to displays cannot leak data, cannot introduce vulnerabilities, and must support encryption end-to-end. Any degradation of video quality, especially text, is unacceptable because analysts need to read log entries, IP addresses, and alert details at a glance.
Typical Sources
- SIEM dashboards (Splunk, QRadar, Microsoft Sentinel)
- Threat intelligence feeds and geo-mapping
- Network traffic analysis and packet inspection tools
- Vulnerability management consoles
- Secure communication channels
- Physical security camera feeds (perimeter, server room)

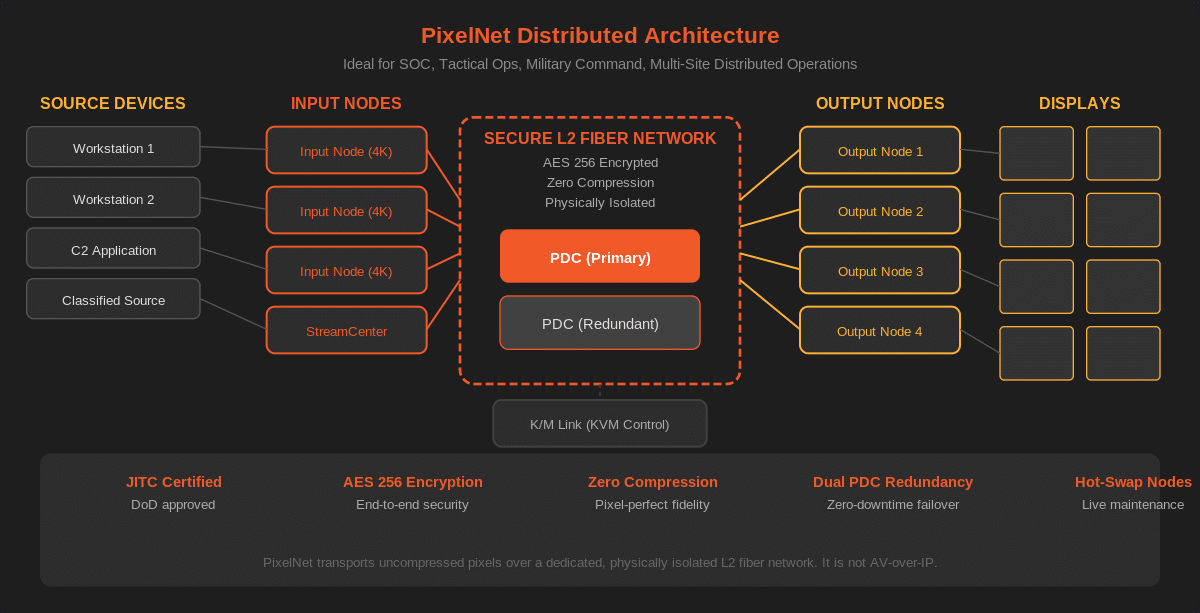

Why PixelNet Fits
PixelNet was engineered for exactly this kind of environment. It transports uncompressed pixel data across a secure, enclosed Layer 2 fiber network with zero compression, meaning every character of every log entry arrives at the display wall with absolute fidelity. AES 256-bit encryption protects data in transit, and because PixelNet operates on a dedicated, physically isolated network rather than shared IT infrastructure, there is no attack surface exposed to the broader enterprise network.
PixelNet holds JITC (Joint Interoperability Test Command) certification, confirming it meets the rigorous security requirements of U.S. Department of Defense environments. Dual PDC (Primary Director Controller) redundancy ensures that if one controller fails, the system continues operating without interruption. Hot-swappable nodes allow maintenance without downtime, which is essential for a SOC that can never go dark.
Emergency Operations Center (EOC)
Recommended processor: Catalyst XL
The Environment
Emergency operations centers serve as command hubs during natural disasters, public health emergencies, and large-scale incidents. They bring together personnel from multiple agencies, including fire, police, EMS, public works, and state or federal liaisons, all of whom need to see different data sets on the same wall. EOCs are often dormant for extended periods, then must activate rapidly and operate at full capacity under extreme pressure. The video wall must support fast reconfiguration as the nature of the emergency evolves.
Typical Sources
- GIS mapping and situational awareness platforms (WebEOC, Esri)
- Weather radar and satellite feeds
- Traffic and transportation camera networks
- News and social media monitoring
- Inter-agency communication tools
- Resource tracking and logistics dashboards
- Video conferencing with field teams and partner agencies
Why Catalyst XL Fits
The EOC’s defining characteristic is multi-agency coordination under time pressure. Canvas software on the Catalyst XL allows operators to create and save distinct layout presets for different types of emergencies, then recall the appropriate preset in seconds when an activation occurs. During an evolving situation, operators can dynamically add, resize, and reposition sources without interrupting what is already on screen.
The Catalyst XL’s ability to handle up to 156 4K sources and over 1,500 IP streams ensures that even in a worst-case scenario, where every agency is feeding data to the wall simultaneously, the processor has capacity to spare. Its Xeon-based architecture with up to 16 cores provides the compute headroom needed for running native applications like GIS platforms directly on the processor.
Tactical Operations Center and Military Command
Recommended processor: PixelNet
The Environment
Tactical operations centers and military command facilities handle classified information at various security levels. The video wall infrastructure must comply with strict government security standards, support air-gapped network architectures, and deliver uncompressed visual quality so that intelligence imagery, mapping data, and operational overlays remain pristine. Redundancy is not optional; these facilities must continue operating even during partial hardware failure.
Typical Sources
- Classified intelligence feeds and imagery
- Command and control (C2) applications
- Geospatial mapping and satellite imagery
- Video teleconference (VTC) systems
- Sensor data and telemetry
- Battle management displays
Why PixelNet Fits
PixelNet is purpose-built for classified environments. Its JITC certification confirms compliance with DoD interoperability and security requirements. AES 256-bit encryption on the dedicated fiber network ensures that data in transit is protected at the highest commercially available standard. Because PixelNet operates on a physically isolated Layer 2 network, there is a clear air gap between the video wall infrastructure and any external network.
The architecture delivers zero-compression pixel transport, which is essential for military applications where a single pixel of degradation in a satellite image or reconnaissance photo could mean the difference between identifying a threat and missing it. Dual PDC redundancy and hot-swappable nodes ensure the wall stays operational during any single component failure, meeting the stringent uptime requirements of tactical environments.
Transportation Management Center (TMC)
Recommended processor: Catalyst XL
The Environment
Transportation management centers oversee highway systems, transit networks, airports, and port operations. These facilities ingest enormous volumes of video from traffic cameras, dynamic message signs, toll plazas, and rail crossings, alongside SCADA data from infrastructure sensors, weather services, and incident management software. A large TMC may monitor hundreds of cameras across thousands of miles of roadway, and the video wall must be capable of displaying any combination of these feeds at any time.
Typical Sources
- CCTV traffic cameras (often hundreds to thousands)
- ATMS (Advanced Traffic Management System) applications
- SCADA feeds from road sensors, bridges, tunnels
- Weather radar and road condition monitoring
- Incident management and CAD systems
- Dynamic message sign control interfaces
- Transit tracking and fleet management dashboards
Why Catalyst XL Fits
The sheer volume of camera feeds in a transportation environment demands a processor with massive IP stream decoding capacity. The Catalyst XL’s ability to decode over 1,500 IP streams simultaneously makes it the ideal choice. Operators can call up any camera on any portion of the wall in seconds, cycle through predefined camera tours, or display a fixed grid of critical intersections while overlaying SCADA dashboards and weather data.
Canvas software allows TMC operators to create specialized layout presets: one for normal operations, another for rush hour monitoring, another for severe weather response, and more. StreamPoint encoders are a valuable supplement in TMC deployments, capturing video from legacy analog cameras or remote facilities and streaming it to the Catalyst over the network.
Utility and Energy Control Room
Recommended processor: Catalyst V or Catalyst XL
The Environment
Utility and energy control rooms oversee the generation, transmission, and distribution of electricity, natural gas, water, or other critical infrastructure. Operators monitor SCADA systems that display real-time data from substations, pipelines, treatment plants, and renewable energy sites. The video wall provides a persistent overview of grid status, alarm conditions, and geographic asset maps. Reliability requirements are extreme, as even brief outages in visibility can lead to cascading infrastructure failures.
Typical Sources
- EMS/SCADA applications (grid monitoring, load balancing)
- Geographic information system (GIS) maps
- Weather monitoring and forecasting tools
- Alarm management and historian displays
- IP cameras covering substations and facilities
- Market and pricing dashboards
- Regulatory compliance and reporting interfaces
Why Catalyst V or XL Fits
The Catalyst V is often the ideal choice for utility control rooms that need powerful processing in a quiet environment. Its i9-based architecture delivers strong performance while maintaining an ultra-quiet thermal profile, which is important in spaces where operators spend entire shifts. For larger utility operations with more extensive source counts, the Catalyst XL provides additional capacity with its Xeon processor and expandable PCIe architecture.
Both models run Canvas for unified wall management, and both can host SCADA client applications natively, reducing the number of separate source PCs in the room. The ability to save and recall layout presets means that different operational modes, such as normal monitoring versus emergency response, can be activated instantly.
Corporate Experience Center and Boardroom
Recommended processor: Catalyst Element or SPARK 2.0
The Environment
Corporate experience centers and executive boardrooms are designed to impress. The video wall in these spaces might showcase brand content, product demonstrations, real-time company metrics, or immersive visual experiences for visiting customers and partners. Aesthetics matter as much as functionality. The processor must be compact, quiet, and capable of driving high-resolution content with visual polish, including smooth transitions and high frame rates.
Typical Sources
- Corporate presentations and video content
- Real-time KPI dashboards and data visualizations
- Product demonstration feeds and interactive displays
- Laptop and wireless presentation inputs from guests
- Video conferencing systems
- Digital signage and branded content loops
Why Catalyst Element or SPARK 2.0 Fits
The Catalyst Element packs Xeon-class processing into a compact 1U rack-mount chassis with up to 8 graphic outputs, making it ideal for experience centers that need to drive multiple displays without a large equipment footprint. Its small size means it can be tucked into a credenza, AV closet, or behind the display wall itself.
For executive boardrooms, the SPARK 2.0 is purpose-built for conference and collaboration environments. It is certified for Jupiter’s Pana 21:9 ultrawide displays, creating a seamless integration between processor and display that delivers a stunning visual experience. Canvas software provides an intuitive interface that non-technical users, such as executive assistants or facilities staff, can operate confidently to manage content on the wall.
Conference and Collaboration Room
Recommended processor: SPARK 2.0
The Environment
Conference and collaboration rooms are the everyday workhorses of corporate AV. They host meetings, video calls, strategy sessions, and training workshops. The video wall processor must support quick source switching, wireless presentation from laptops and mobile devices, and seamless integration with unified communications platforms. Simplicity of operation is critical because the technology serves a rotating cast of users with varying technical skills.
Typical Sources
- Laptop presentations via HDMI or wireless casting
- Video conferencing platforms (Zoom, Teams, Webex)
- Document cameras and whiteboards
- Web browsers and cloud applications
- Room scheduling and status displays
Why SPARK 2.0 Fits
The SPARK 2.0 was designed specifically for conference environments. It supports 4 HD outputs, making it ideal for driving one or two displays plus confidence monitors or room status screens. Its certification with Jupiter’s Pana 5K ultrawide displays means that a single SPARK 2.0 paired with a Pana display can replace the traditional multi-monitor conference room setup with a cleaner, more immersive solution. Canvas provides the familiar drag-and-drop interface for positioning sources on screen, and operators can create presets for common meeting configurations: “video call,” “presentation,” “collaboration,” and so on.
Multi-Site Distributed Operations
Recommended processor: PixelNet
The Environment
Some organizations operate video walls across multiple physical locations, such as a government agency with regional operations centers, a financial institution with trading floors in different cities, or a defense facility with geographically separated buildings that need to share content. In these deployments, the video wall infrastructure must span buildings, campuses, or even cities, while maintaining consistent performance and centralized management.
Typical Sources
- Sources distributed across multiple buildings or campuses
- Remote workstations and server rooms
- Centralized data center applications shared to multiple walls
- Cross-site video conferencing and collaboration feeds
- Sensor data from geographically dispersed assets
Why PixelNet Fits
PixelNet’s distributed architecture was specifically designed for deployments that extend beyond a single room. Because each node, whether input, output, or controller, connects over a fiber network, the system can span buildings on a campus or reach across extended distances. Adding a new location to the PixelNet fabric requires only connecting new nodes to the network rather than replacing or upgrading a central processor.
The unlimited scalability of PixelNet means that a deployment starting with a single video wall in one building can grow to encompass dozens of walls across multiple sites without architectural limitations. Dual PDC redundancy ensures that even as the system grows, reliability is maintained. Canvas integration provides a unified management view across all connected walls, though integrators should note that Canvas functionality on PixelNet is more focused compared to the full feature set available on the Catalyst platform.
Surveillance and Monitoring Room
Recommended processor: J-Series J400 or J600
The Environment
Surveillance and physical security monitoring rooms focus on displaying camera feeds with maximum clarity and minimal latency. Operators must be able to read license plates, identify faces, and spot anomalies across dozens of simultaneous video streams. Text overlays from camera metadata, timestamps, and alarm notifications must be rendered with perfect sharpness. These rooms demand a processor that prioritizes video quality and responsiveness above all else.
Typical Sources
- IP camera streams (ONVIF, RTSP)
- Video management system (VMS) client applications
- Access control system dashboards
- Alarm and intrusion detection panels
- Perimeter mapping and floor plan overlays
- Analytics and AI-based detection feeds

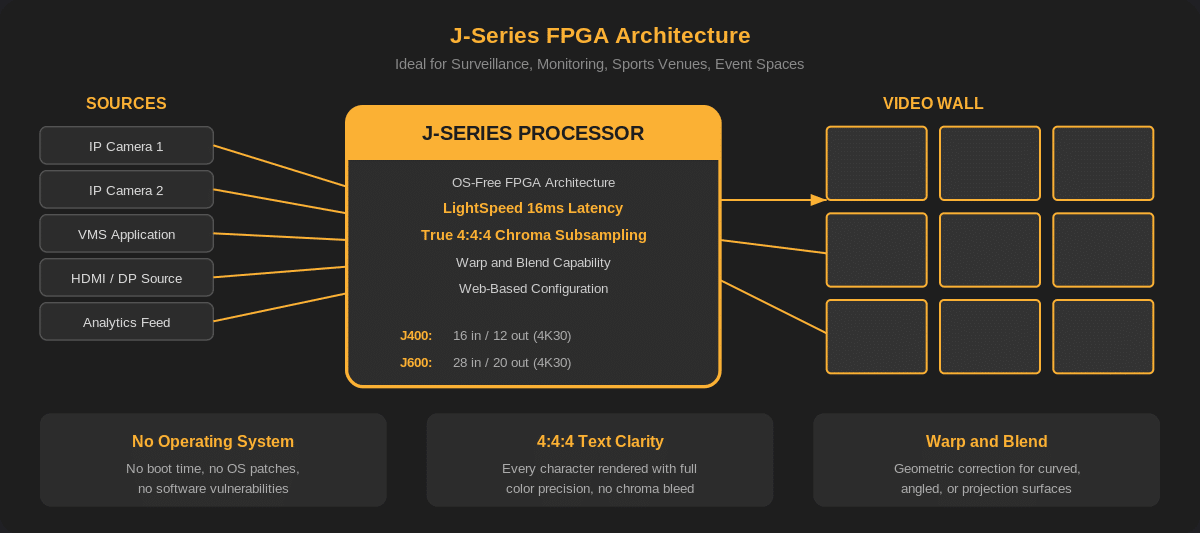

Why J-Series Fits
The J-Series processors deliver three capabilities that make them ideal for surveillance environments. First, LightSpeed 16-millisecond latency ensures that what operators see on the wall is as close to real-time as possible, critical when tracking a moving subject or responding to an active incident. Second, true 4:4:4 chroma subsampling means text overlays, timestamps, and camera metadata remain razor-sharp rather than suffering the color bleed that 4:2:0 processing introduces. Third, the OS-free FPGA architecture eliminates operating system overhead, boot delays, and software update vulnerabilities.
The J400 supports up to 16 4K inputs and 12 4K30 outputs, serving smaller surveillance rooms. The J600 scales to 28 4K inputs and 20 4K30 outputs for larger installations. Both models use a web-based configuration interface that is straightforward to set up and manage without specialized software.
Digital Signage and Lobby Display
Recommended processor: J4
The Environment
Lobbies, reception areas, retail environments, and public-facing spaces often feature small video walls for digital signage, wayfinding, or brand display. These installations are typically simple: a single 4K source split across a 2×2 or 1×3 array of displays. The processor needs to be affordable, easy to install, and reliable enough to run unattended for months or years at a time. There is no need for complex multi-source management or dynamic layout changes.
Typical Sources
- Digital signage media players
- Content management system (CMS) outputs
- Branded video loops and animations
- Wayfinding and directory displays
- Live data feeds (stock tickers, social media walls)
Why J4 Fits
The J4 is purpose-built for exactly this kind of deployment. It accepts a single 4K DisplayPort or HDMI input and distributes it across up to 4 FullHD outputs with pre-configured layouts including 2×2 and 1×3 arrangements. Available as either a standalone appliance or a PCIe card that mounts inside a media player, the J4 requires minimal configuration and no ongoing software management. It is the simplest, most cost-effective path to a professional-quality video wall in a lobby, retail space, or public area.
Sports Venue and Event Space
Recommended processor: J-Series J600
The Environment
Sports venues, concert halls, convention centers, and event spaces use video walls for live event coverage, sponsor content, scoreboards, and immersive visual experiences. These installations often involve non-standard display configurations, including curved arrays, L-shaped layouts, and projection blending across multiple surfaces. Content must be delivered with low latency and high visual impact, and the system must be flexible enough to adapt between different types of events.
Typical Sources
- Live event camera feeds
- Replay and highlight systems
- Scoreboard and statistics data
- Sponsor content and advertising
- Social media aggregation walls
- Presentation and keynote feeds (for conventions)
Why J-Series J600 Fits
The J600’s warp and blend capability is what sets it apart for venue applications. Warp correction allows the processor to geometrically adjust the output to compensate for curved, angled, or irregularly shaped display surfaces, something that straight-grid processors cannot do. Edge blending allows multiple projected or tiled images to overlap seamlessly, creating a single continuous visual across complex surfaces.
With 28 4K inputs and 20 4K30 outputs, the J600 can drive large, multi-wall installations from a single processor. Its 16-millisecond LightSpeed latency ensures live camera feeds feel responsive and synchronized. The OS-free FPGA architecture means there is no boot-up wait before events and no operating system concerns during extended operation. For venues that host different types of events, pre-configured layouts can be recalled via the web-based interface to switch the wall configuration in seconds.
StreamPoint and J4: Supplementary Building Blocks
While Catalyst, PixelNet, and J-Series serve as primary video wall processors, two additional Jupiter products act as supplementary components that extend or complement any deployment.
StreamPoint: Extending Source Reach
The StreamPoint encoder captures video at the source location and streams it as H.264 or H.265 over the network to any Jupiter processor. It is available in HD and 4K models, with the StreamPoint 4K offering quad 4K capture for high-density encoding.
StreamPoint solves a common deployment challenge: getting video from a source that is physically distant from the processor. Instead of running long HDMI or fiber cables from a remote server room, data center, or field location, an integrator places a StreamPoint at the source and delivers the content over standard network infrastructure. This makes StreamPoint a natural companion to Catalyst in NOC, EOC, TMC, and utility control room deployments where sources are distributed across a facility or campus.
J4: The Simple Breakout Box
The J4 serves as an entry-level video wall processor for applications that need minimal source management. While it is the primary recommendation for digital signage and lobby displays, it can also function as a supplementary output device in larger systems. For example, a campus with a Catalyst-powered operations center might also deploy J4 units in hallways and reception areas to display simplified status dashboards on small 2×2 video walls, all without adding load to the main processor.
Decision Framework: How to Choose Your Video Wall Processor
With four processor families and multiple models within each, the selection process can seem complex. The flowchart below simplifies the decision by walking through the key questions that determine which processor fits your environment.
Five Questions That Determine Your Processor

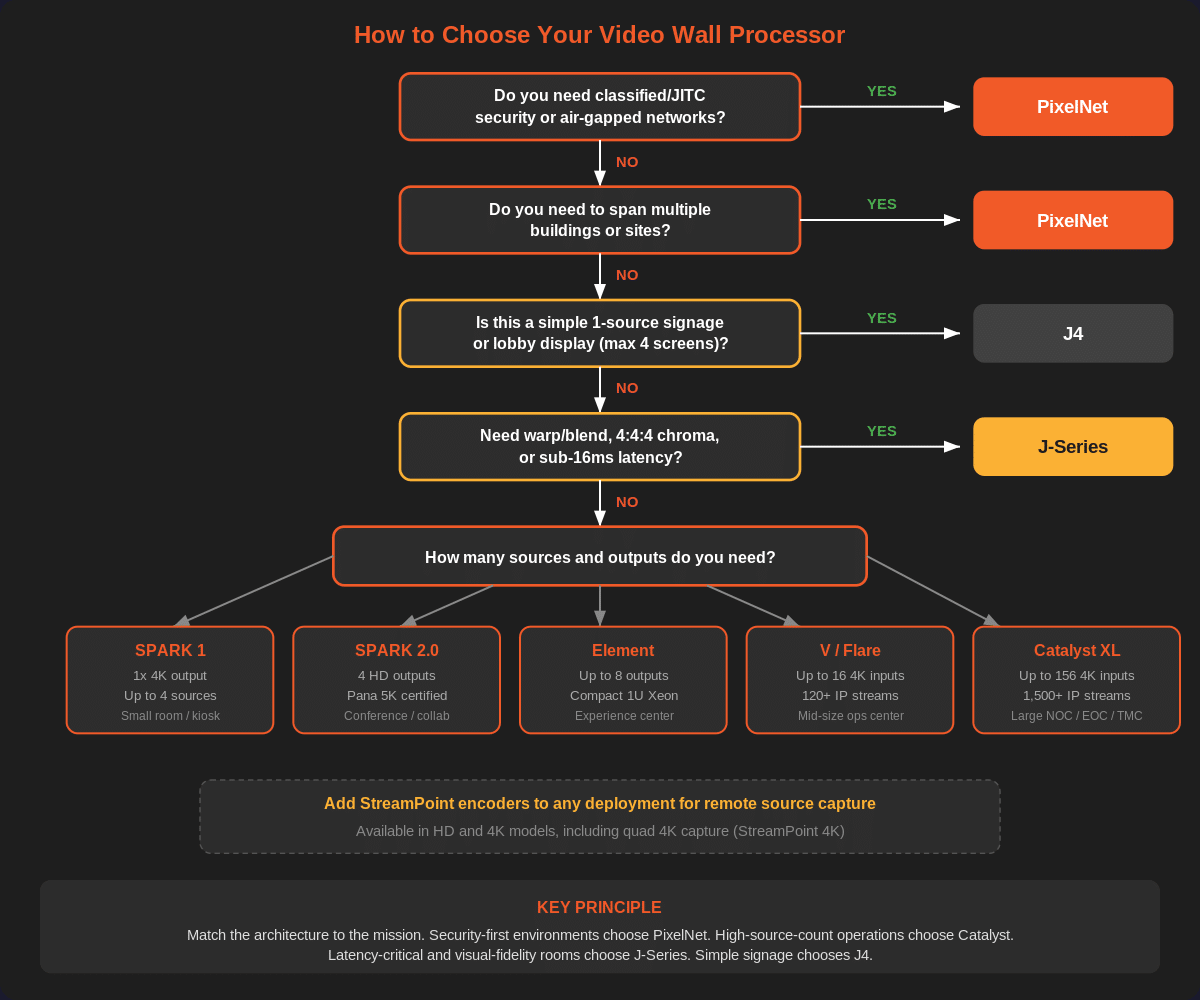

To make the selection process even more concrete, walk through these five questions in order:
- Does the environment handle classified data or require government security certification? If yes, PixelNet is the only choice. Its JITC certification, AES 256 encryption, and physically isolated network architecture meet the requirements that no other processor family can satisfy.
- Does the deployment span multiple buildings, campuses, or geographic sites? If yes, PixelNet’s distributed fiber architecture scales across distances that centralized processors cannot reach. Each additional location simply adds nodes to the existing network.
- Is this a simple single-source display with four or fewer screens? If yes, the J4 provides the most cost-effective, maintenance-free solution. No software to manage, no complex configuration.
- Does the environment require warp and blend, true 4:4:4 chroma subsampling, or sub-16ms latency? If yes, the J-Series is the right fit. Its FPGA architecture delivers capabilities that software-based processors cannot match for these specific requirements.
- How many sources and outputs does the deployment require? This question sizes the Catalyst model. A conference room with a few sources and a single ultrawide display needs a SPARK 2.0. A mid-size control room needs a Catalyst V or Flare. A large operations center with dozens of 4K inputs and over a thousand IP streams needs the Catalyst XL.
When Environments Overlap
Real-world deployments do not always fit neatly into a single category. A government agency might need the security of PixelNet for its classified operations floor and the source capacity of Catalyst XL for its unclassified operations center in the same building. A corporate campus might use Catalyst Element in its experience center, SPARK 2.0 in conference rooms, and J4 units in lobbies. Jupiter’s processor families are designed to coexist and complement each other within the same organization.
The important principle is to match the processor architecture to the mission requirements of each individual space rather than standardizing on a single product across all environments. Selecting the right processor for each room ensures optimal performance, appropriate security, and sensible budget allocation.
Conclusion
Choosing a video wall processor is not a one-size-fits-all decision. The demands of a military command center, a transportation management hub, a corporate boardroom, and a sports venue are fundamentally different, and each deserves a processor architected for its specific mission.
Jupiter Systems offers a complete portfolio that covers every point on the spectrum. Catalyst provides centralized processing power from small conference rooms to massive operations centers with up to 156 4K sources. PixelNet delivers uncompressed, encrypted, JITC-certified pixel transport across secure fiber networks for classified and multi-site environments. J-Series brings OS-free FPGA performance with 16ms latency and true 4:4:4 chroma for surveillance, monitoring, and venue applications. J4 and StreamPoint round out the lineup as purpose-built accessories for simple signage and remote source capture.
The right processor for the right space means operators focus on their mission instead of their technology. It means integrators deliver systems that perform as specified on day one and continue performing for years to come. And it means decision makers invest confidently, knowing the architecture they chose was designed for exactly their environment.
Ready to match the right processor to your space? Contact Jupiter Systems or reach out to your local AV integrator to start the conversation.
