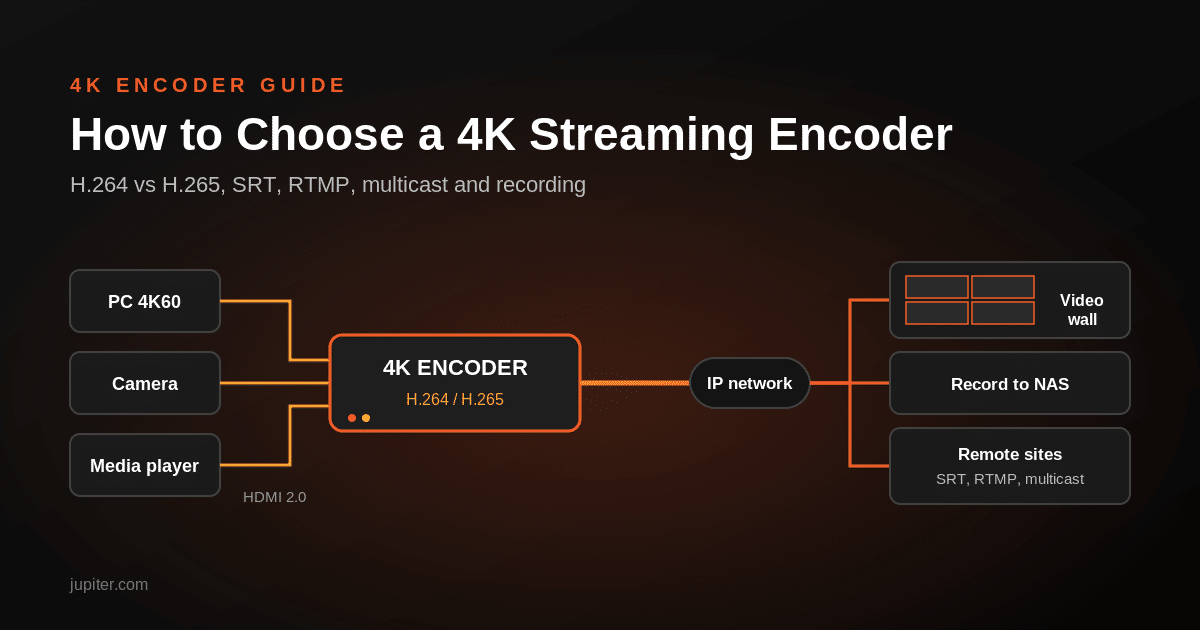

A 4K encoder takes a 4K video signal from a computer, camera or media player, compresses it in real time and sends it across an IP network, so the same source can be viewed, recorded or displayed on a video wall anywhere on that network. This guide explains how a 4K streaming encoder works, which codec and streaming protocol to choose, how much bandwidth to plan for, and what to check before you specify one for a control room, a corporate campus or a live production.
What Is a 4K Encoder?
A 4K video encoder is a device that converts a baseband video signal, usually HDMI 2.0 at up to 3840 x 2160 and 60 frames per second, into a compressed IP stream. An uncompressed 4K60 signal carries roughly 12 Gbps of pixel data, far more than a standard office network can move. The encoder uses a codec such as H.264 or H.265 to shrink that signal to a few tens of megabits per second, then packages it in a streaming protocol that decoders, video wall processors, media players and recording servers understand.

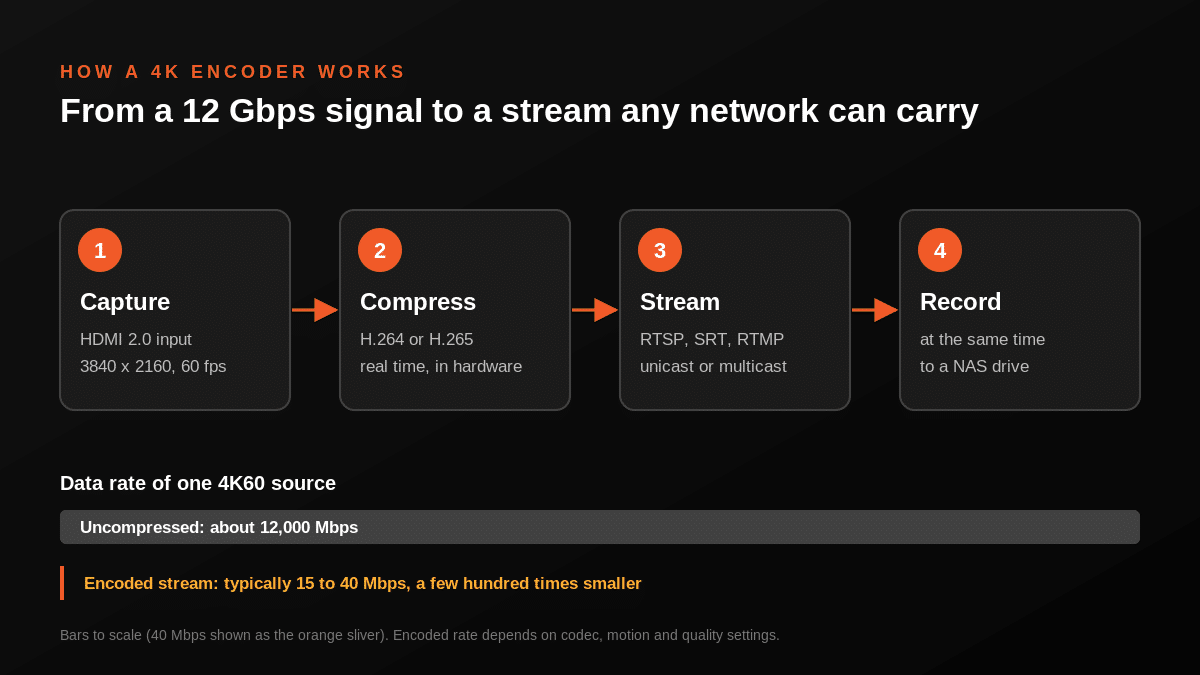

In practice a 4K encoder does four jobs at once: it captures the source, compresses it, streams it to one or many destinations, and often records it to network storage at the same time. Professional models also pass the original signal through to a local monitor, so the source stays usable at its own location.
Hardware vs. Software Encoders
Software encoders run on a PC and use its processor or graphics card to compress video. They are flexible and inexpensive for a single stream, but they depend on the health of that PC, its operating system updates and its other workloads. A hardware 4K encoder is a dedicated appliance with its own encoding chip. It boots in seconds, runs headless, draws a few watts and keeps encoding at a fixed quality around the clock. For permanent installations such as control rooms, lobbies and lecture halls, where a source must be available 24/7, a hardware encoder is the more predictable choice.

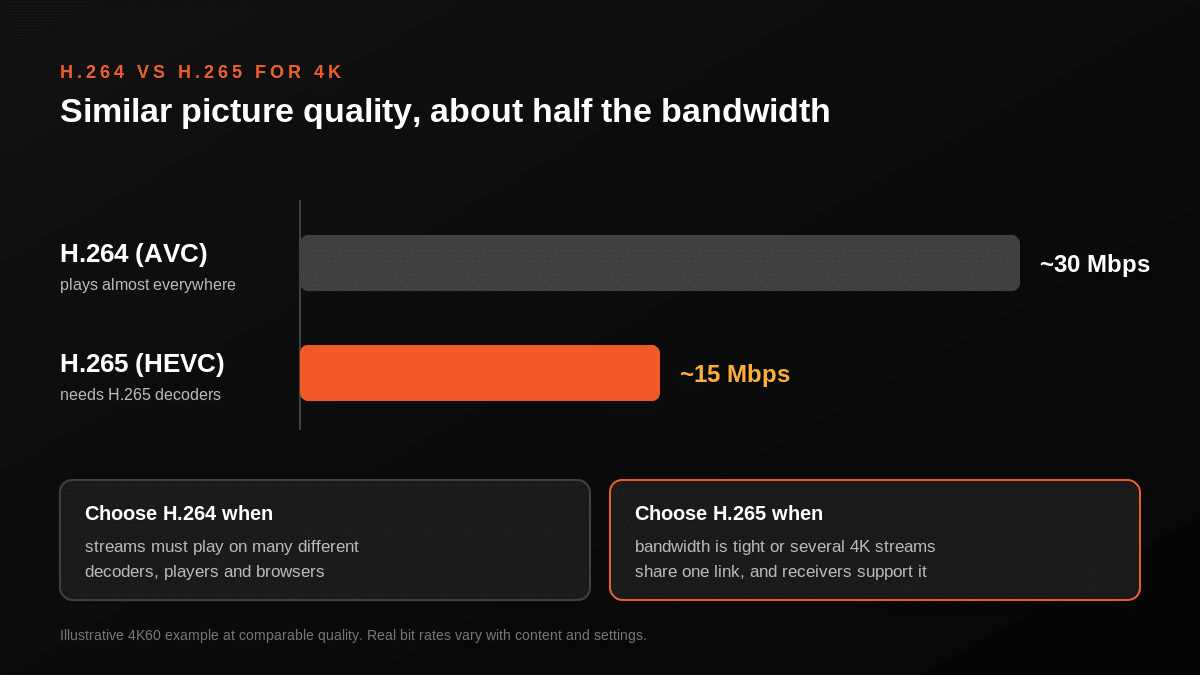

H.264 vs. H.265: Which Codec for 4K?
The codec decides how much bandwidth a 4K stream needs and which devices can play it.
- H.264 (AVC) is supported by virtually every decoder, browser, media player and video wall processor. It is the safest choice when streams must reach many different devices.
- H.265 (HEVC) delivers similar visual quality at roughly half the bit rate of H.264. It is the better choice for 4K when bandwidth is limited or when several 4K streams share the same network link, provided every receiving device can decode it.
As a starting point, a 4K60 stream of desktop content or camera video typically needs somewhere between 15 and 40 Mbps depending on codec, motion and the quality you expect. Fast motion and fine text need more; static dashboards need less. A good 4K encoder lets you choose constant or variable bit rate, set the group of pictures (GOP) length and save several encoding profiles, so you can tune each stream to its content instead of using one setting for everything.
Key terms in plain language
- Codec: the method used to shrink video. It removes detail the eye barely notices and only sends what changes between frames.
- Bit rate (Mbps): how much data per second the stream uses. Higher bit rates keep more detail but need more network capacity.
- CBR and VBR: constant bit rate keeps the stream at a fixed size, which is predictable for networks. Variable bit rate spends more data on busy scenes and less on static ones, which saves bandwidth on average.
- GOP (group of pictures): the encoder sends one complete frame, then only the changes for the next frames. A short GOP recovers faster from network errors and suits live switching, a long GOP saves bandwidth.
- Chroma subsampling (4:2:0): the encoder keeps full brightness detail but stores color at a lower resolution, because the eye is far more sensitive to brightness than to color.
- Latency: the delay between the source and the screen. Encoding, the network and the decoder each add a little.

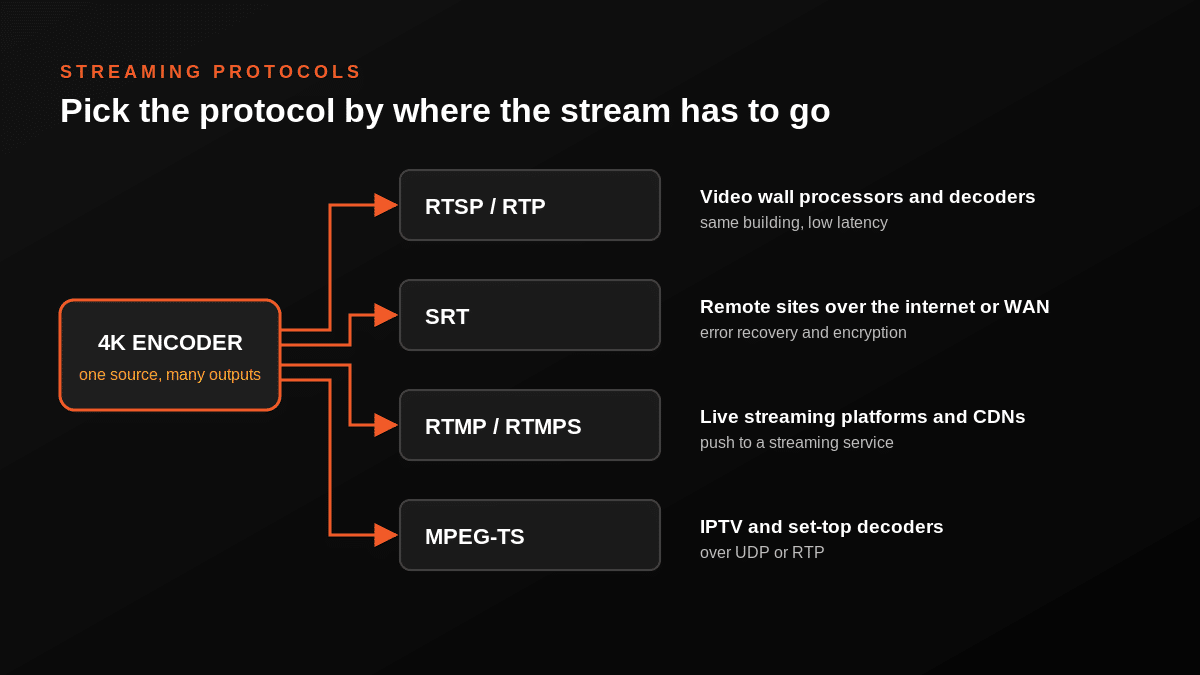

Streaming Protocols: SRT, RTMP, RTSP and MPEG-TS
The protocol decides where a stream can go and how well it survives the network on the way.
- RTSP and RTP are the standard for local networks. Video wall processors, decoders and recording systems pull the stream directly from the encoder with low latency.
- SRT (Secure Reliable Transport) adds error recovery and encryption for streams that cross the internet or a wide area network between sites.
- RTMP and RTMPS push a stream to live streaming platforms and content delivery networks.
- MPEG-TS over UDP or RTP is widely used for IPTV style distribution and set-top decoders.

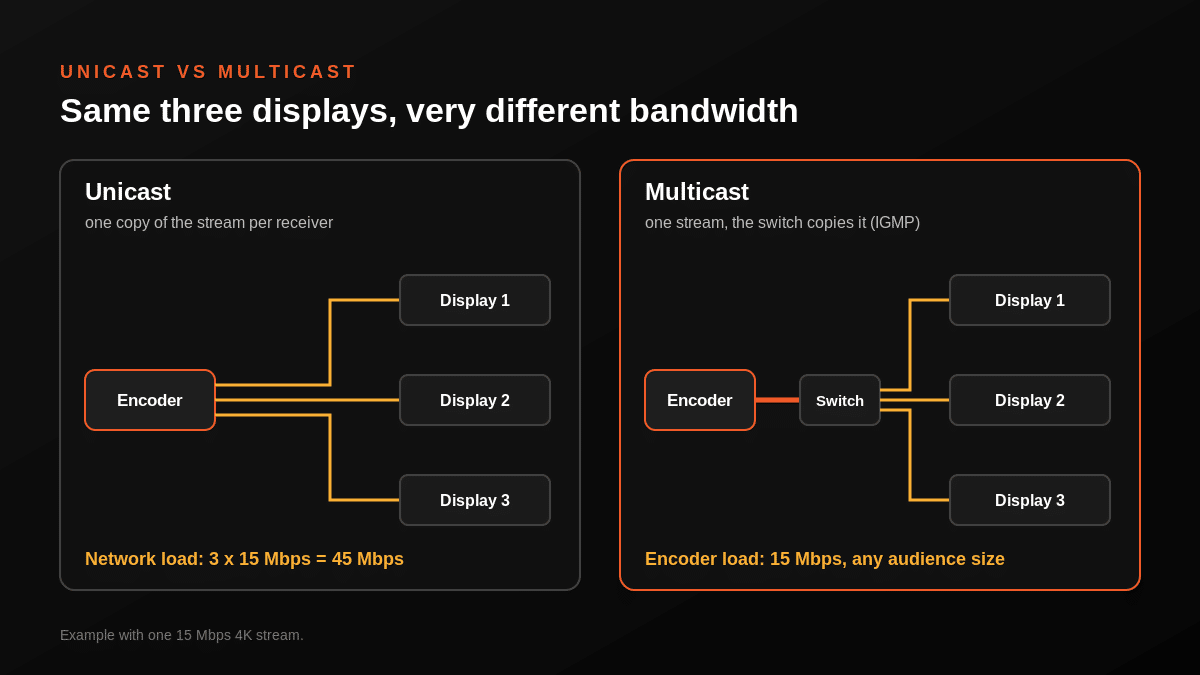

Unicast or multicast?
Unicast sends a separate copy of the stream to each receiver, which is simple but multiplies bandwidth as viewers are added. Multicast sends one stream that the network delivers to every receiver that subscribes to it, so ten displays cost the same bandwidth as one. Multicast requires switches that support IGMP, so confirm that with your network team before you design a large deployment.
Latency, Quality and When Not to Compress
Every encoder adds a small delay while it compresses and buffers video, and every codec makes trade-offs with fine detail. Most professional H.264 and H.265 encoders use 4:2:0 chroma subsampling, which is excellent for camera feeds, presentations and dashboards. For most monitoring, collaboration and signage applications that trade-off is invisible.
Some environments cannot accept any change to the original pixels, such as intelligence imagery or medical and forensic review. There, an uncompressed architecture is the right tool. Read our guide to uncompressed video wall processing to see when zero compression matters, and how it compares with other video wall processing architectures.
4K Encoders for Video Walls and Control Rooms
In a control room, the most important sources are often not in the room: a camera in another building, a workstation in a data center, a presentation in a remote briefing center. A 4K encoder at the source turns each of them into an IP stream that the wall can display alongside local inputs.
- Catalyst video wall processors decode up to 1,500+ H.264 IP streams in their largest configurations, next to direct HDMI and DisplayPort inputs.
- PixelNet adds a StreamCenter node that decodes IP streams onto its uncompressed distributed walls.
- Canvas software lets operators place those streams on the wall and share them with users beyond the room.
The same stream can be recorded at the same time, which gives operators an archive of what was on the wall without adding a separate recorder for every source.
How to Choose a 4K Streaming Encoder: Checklist
- Inputs: HDMI 2.0 with audio for true 4K60 capture, plus a loop-out to keep a local display.
- Channels per unit: one 4K source per box, or several 4K inputs in a single appliance to save rack space and power.
- Codecs: H.264 for compatibility, H.265 for bandwidth, ideally both.
- Bit rate range and rate control: CBR and VBR, adjustable GOP and multiple profiles.
- Protocols: RTSP/RTP for local decoders, SRT for remote sites, RTMP/RTMPS for streaming platforms, MPEG-TS for IPTV.
- Distribution: unicast, multicast and multi-unicast, with IGMP support.
- Recording: stream and record at the same time to a NAS or shared network drive.
- Management: central discovery and configuration of every encoder on the network, with password protection.
- Integration: confirmed compatibility with the video wall processor and software you use.
StreamPoint: Jupiter’s 4K and HD Encoders
StreamPoint 4K encoders are built to bring remote sources onto Jupiter video walls and to stream or record them anywhere on the network.
- StreamPoint 4K: HDMI 2.0 input with audio, capture up to 3840 x 2160 at 60 Hz, H.264 and H.265 encoding from 64 Kbps to 60 Mbps, and SRT, RTMP/RTMPS, RTSP/RTP and MPEG-TS streaming with unicast and multicast. The quad channel model captures and encodes four 4K sources at once while recording them.
- StreamPoint HD: a single channel HDMI encoder for 1080p60 sources, streaming H.264 at user-defined low bit rates for excellent quality with minimal bandwidth.
- Both models: record to a NAS or shared network drive, pass video through to a local display, and are managed from included software that discovers and configures every unit on the network.
StreamPoint integrates with Jupiter video wall processors, including Catalyst, PixelNet, J-Series and Canvas, so a remote source becomes one more window on the wall.
Frequently Asked Questions
What is the best encoder for 4K streaming?
The best 4K encoder is the one that matches your destination. For streams that stay on a local network and feed decoders or a video wall, look for RTSP/RTP and multicast. For streams that cross the internet, look for SRT. For live streaming platforms, look for RTMP or RTMPS. In every case, choose a hardware encoder with HDMI 2.0 input and H.265 support if you need full 4K60 at a sensible bit rate.
What codec should I use for 4K?
Use H.265 when bandwidth matters and every receiver can decode it, because it needs roughly half the bit rate of H.264 for similar quality. Use H.264 when the stream must play on the widest range of devices.
What is a streaming encoder?
A streaming encoder is a device or application that compresses live video and sends it over an IP network using a streaming protocol, so it can be watched, displayed or recorded somewhere else.
Is 4K streaming actually 4K?
Resolution and quality are not the same thing. A stream can be 3840 x 2160 pixels yet look soft if the bit rate is too low for the content. Matching the bit rate, codec and frame rate to the source is what makes a 4K stream look like 4K.
Can a 4K encoder feed a video wall?
Yes. A video wall processor that decodes IP streams, such as Catalyst, or a PixelNet system with a StreamCenter node, displays encoder streams as windows on the wall next to local inputs. StreamPoint encoders are designed for exactly that.
The Bottom Line
Choosing a 4K encoder comes down to four questions: where the stream has to go, how much bandwidth you can spend, which devices must decode it, and whether you also need to record it. Answer those, and the codec, protocol and channel count follow. If your 4K sources need to reach a video wall, talk to a Jupiter expert about pairing StreamPoint encoders with the right processor for your room.
